The recommended PCB layout for ESDLC3304P9-TP involves placing the device close to the protected line, using short traces, and ensuring good grounding. A 4-layer PCB with a solid ground plane is recommended. Additionally, the device should be placed in a way that minimizes the distance between the input and output pins.
ESDLC3304P9-TP is designed to handle surge pulses according to IEC 61000-4-5. It can withstand surge pulses up to 4A (8/20μs) and 2A (10/700μs) without damage. The device's surge capability is due to its internal TVS diode and resistive components.
The maximum operating temperature range for ESDLC3304P9-TP is -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, and it's recommended to operate it within the recommended temperature range of -20°C to 85°C for optimal performance.
Yes, ESDLC3304P9-TP can be used in high-frequency applications up to 1GHz. However, the device's performance may degrade at very high frequencies, and it's recommended to evaluate the device's performance in the specific application using simulation tools or prototyping.
ESDLC3304P9-TP is designed to minimize the impact on signal integrity. The device's internal resistive components and TVS diode are optimized to minimize signal attenuation and distortion. However, the device may introduce some signal loss and distortion, especially at high frequencies. It's recommended to evaluate the device's impact on signal integrity in the specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ESDLC3304P9-TP Overview

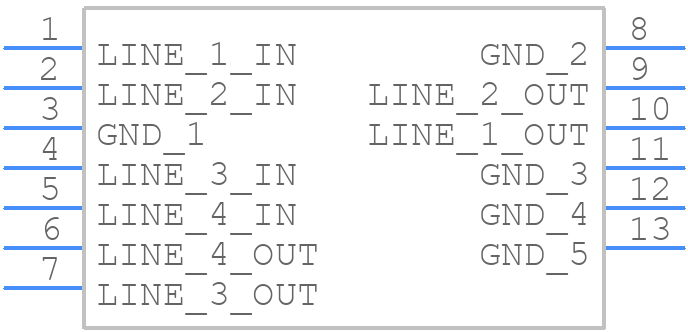

Use the download button to access the ESDLC3304P9-TP schematic symbol, PCB footprint, and 3D model.
