- Part Number ESDSLC0524F-TP
- Manufacturer MCC
- Pin Count 9
- Part Category Diode ESD (Uni-directional)
- Package Category Other
- Footprint Name Other - DFN-10
- Released Date Jan 7, 2024
- Last Modified Date May 20, 2024 9:14 AM UTC
- Pinout / Pin List Click Here (Member Only)
ESDSLC0524F-TP Details
-
Manufacturer Part Number:
ESDSLC0524F-TP
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8541.10.00.50
-
Manufacturer:
Micro Commercial Components
-
YTEOL:
7
-
Clamping Voltage-Max:
16 V
-
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
-
JESD-30 Code:
R-PDSO-N10
ESDSLC0524F-TP Frequently Asked Questions (FAQs)
-
The recommended land pattern for ESDSLC0524F-TP is a rectangular pad with a size of 0.5mm x 0.5mm, with a solder mask clearance of 0.1mm around the pad.
-
Yes, ESDSLC0524F-TP is rated for operation up to 150°C, making it suitable for high-temperature applications. However, it's essential to ensure that the device is properly derated to prevent overheating.
-
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pad. Use a soldering technique that minimizes the risk of overheating the device.
-
Yes, ESDSLC0524F-TP is compatible with lead-free soldering. However, it's essential to follow the recommended soldering profile and temperature to prevent damage to the device.
-
The typical response time of ESDSLC0524F-TP is less than 1ns, making it suitable for high-speed applications.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
ESDSLC0524F-TP Overview

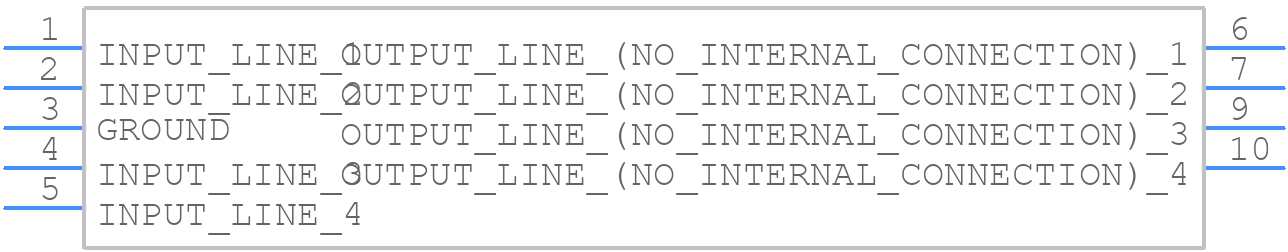

Use the download button to access the ESDSLC0524F-TP schematic symbol, PCB footprint, and 3D model.
