The recommended PCB layout for optimal ESD protection involves placing the ESDU5V0M5-TP as close as possible to the input pins of the protected IC, and using a short and wide trace to connect the device to the ground plane. This minimizes the inductance and resistance of the connection, ensuring effective ESD protection.
The ESDU5V0M5-TP is designed to handle high surge currents during ESD events. It can withstand peak currents of up to 30A, and its low clamping voltage ensures that the protected IC is not exposed to excessive voltage stress.
Yes, the ESDU5V0M5-TP is compatible with high-speed signals. It has a low capacitance of 0.5pF, which minimizes signal distortion and attenuation, making it suitable for use in high-speed applications such as USB, HDMI, and Ethernet interfaces.
The ESDU5V0M5-TP has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, from consumer electronics to industrial and automotive systems.
Yes, the ESDU5V0M5-TP is RoHS and REACH compliant, making it suitable for use in applications that require compliance with these environmental regulations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ESDU5V0M5-TP Overview

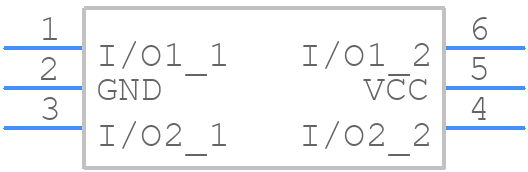

Use the download button to access the ESDU5V0M5-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESDU5,
or try a keyword search, such as Transient Suppressors
