ESDU5V0T5-TP - MCC

Description: ESD Protection Devices Peak Pulse Current(8/20μs) 4A

Download ESDU5V0T5-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

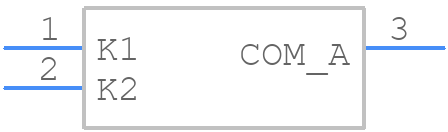

ESDU5V0T5-TP - MCC - PCB symbol
click to zoom
PCB Footprints
ESDU5V0T5-TP - MCC PCB footprint - Other - Other - ESDU5V0T5-TP-1
click to zoom
3D Models
ESDU5V0T5-TP - MCC - 3D model - Other - ESDU5V0T5-TP-1
click to zoom

ESDU5V0T5-TP Details

  • Manufacturer Part Number:

    ESDU5V0T5-TP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-523, 3 PIN

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    6

  • Clamping Voltage-Max:

    11 V

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    56 W

  • Number of Terminals:

    3

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Rep Pk Reverse Voltage-Max:

    5 V

  • Reverse Current-Max:

    1 µA

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

ESDU5V0T5-TP Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal ESD protection involves placing the ESDU5V0T5-TP as close as possible to the input pins of the protected device, and ensuring that the PCB traces between the ESD device and the protected device are as short as possible to minimize inductance and capacitance.
  • The ESDU5V0T5-TP is designed to handle surge currents up to 30A (8/20μs waveform) and can dissipate the energy of an ESD event without damage. However, it's essential to ensure that the PCB layout and surrounding components can also handle the surge current to prevent damage or malfunction.
  • Yes, the ESDU5V0T5-TP is suitable for ESD protection in high-speed data lines due to its low capacitance (0.5pF) and low clamping voltage (5V). However, it's crucial to consider the signal integrity and ensure that the ESD device does not affect the signal quality or introduce unwanted signal reflections.
  • The ESDU5V0T5-TP has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and consumer electronics.
  • Yes, the ESDU5V0T5-TP is compatible with lead-free soldering processes and meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
