ESHSR-0100C0-002R7 - Nesscap

Description: Cylindrical cell - Snap-in terminals

Download ESHSR-0100C0-002R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ESHSR-0100C0-002R7 - Nesscap - PCB symbol
click to zoom
PCB Footprints

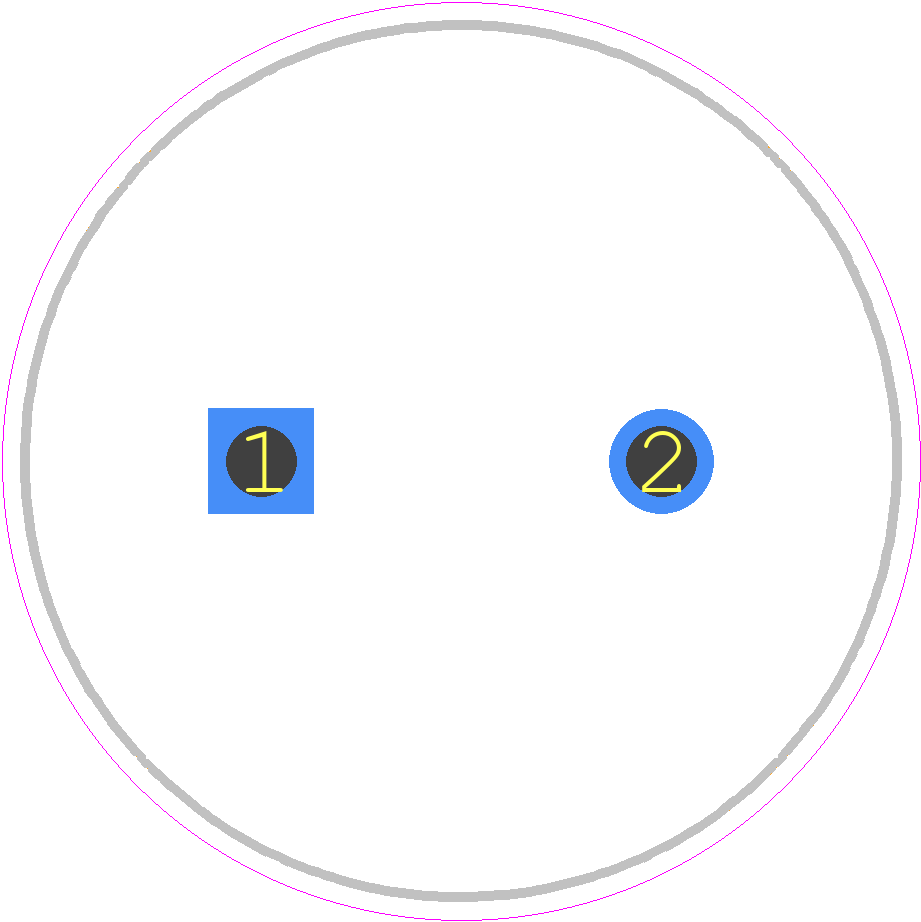

ESHSR-0100C0-002R7 - Nesscap PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22*45_2021
click to zoom
3D Models
ESHSR-0100C0-002R7 - Nesscap - 3D model - Capacitor, Polarized Radial Diameter - 22*45_2021
click to zoom

ESHSR-0100C0-002R7 Details

  • Manufacturer Part Number:

    ESHSR-0100C0-002R7

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Nesscap Co Ltd

  • YTEOL:

    0

  • Capacitance:

    100000000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    2.7 V

  • Surface Mount:

    NO

  • Terminal Shape:

    SNAP-IN

ESHSR-0100C0-002R7 Frequently Asked Questions (FAQs)

  • Store the supercapacitor in a cool, dry place away from direct sunlight, with a temperature range of -20°C to 30°C and relative humidity below 60%.
  • Yes, the ESHSR-0100C0-002R7 is designed to withstand vibrations up to 10G, but it's recommended to consult with Nesscap's application engineers for specific vibration profiles.
  • Handle the supercapacitor by the tabs or leads, avoiding touching the electrodes or can. Use an anti-static wrist strap or mat to prevent ESD damage.
  • The recommended cycle is 500,000 cycles at 25°C, with a charge/discharge current of 1A, and a voltage range of 0V to 2.7V.
  • The ESHSR-0100C0-002R7 is rated for operation up to 65°C, but derating is required above 40°C. Consult Nesscap's application engineers for specific temperature profiles.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ESHSR-0100C0-002R7 Overview

Use the download button to access the ESHSR-0100C0-002R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESHSR, or try a keyword search, such as Aluminum Electrolytic Capacitors
