ESP32-D0WD - Espressif Systems

Description: RF System on a Chip - SoC SMD IC ESP32-D0WD, Dual Core MCU, WiFi & Bluetooth

Download ESP32-D0WD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

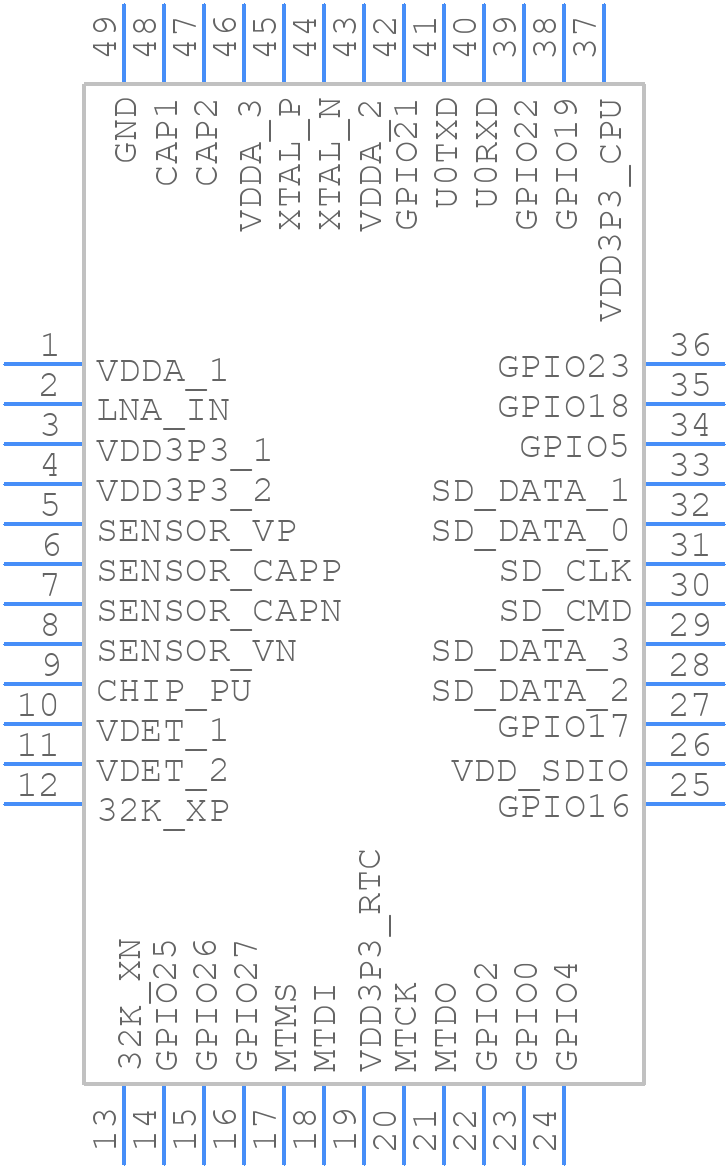

ESP32-D0WD - Espressif Systems - PCB symbol
click to zoom
PCB Footprints
ESP32-D0WD - Espressif Systems PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48 (6x6 mm) Package
click to zoom
3D Models
ESP32-D0WD - Espressif Systems - 3D model - Quad Flat No-Lead - QFN48 (6x6 mm) Package
click to zoom

ESP32-D0WD Details

  • Manufacturer Part Number:

    ESP32-D0WD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    MODULE-38

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Espressif Inc

  • YTEOL:

    3

ESP32-D0WD Frequently Asked Questions (FAQs)

  • The ESP32-D0WD can operate in a temperature range of -40°C to 85°C.
  • To configure the ESP32-D0WD for low power consumption, use the esp_pm API to set the power mode to light sleep or deep sleep, and adjust the clock frequency and voltage to minimize power consumption.
  • Yes, the ESP32-D0WD has a built-in antenna, but you can also use an external antenna by connecting it to the RF pin and configuring the Wi-Fi mode to use the external antenna.
  • To implement secure boot on the ESP32-D0WD, use the esp_secure_boot API to generate a secure boot key, and then sign your firmware with the key using the esp_secure_boot_sign tool.
  • The maximum current consumption of the ESP32-D0WD is approximately 500mA during Wi-Fi transmission, and 10mA in idle mode.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ESP32-D0WD Overview

Use the download button to access the ESP32-D0WD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESP32, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
