ESP32-D2WD - Espressif Systems

Description: RF System on a Chip - SoC SMD IC ESP32-D2WD, Dual Core MCU, WiFi & Bluetooth Combo, 2MByte Flash inside, QFN48-pin, 5x5mm

Download ESP32-D2WD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

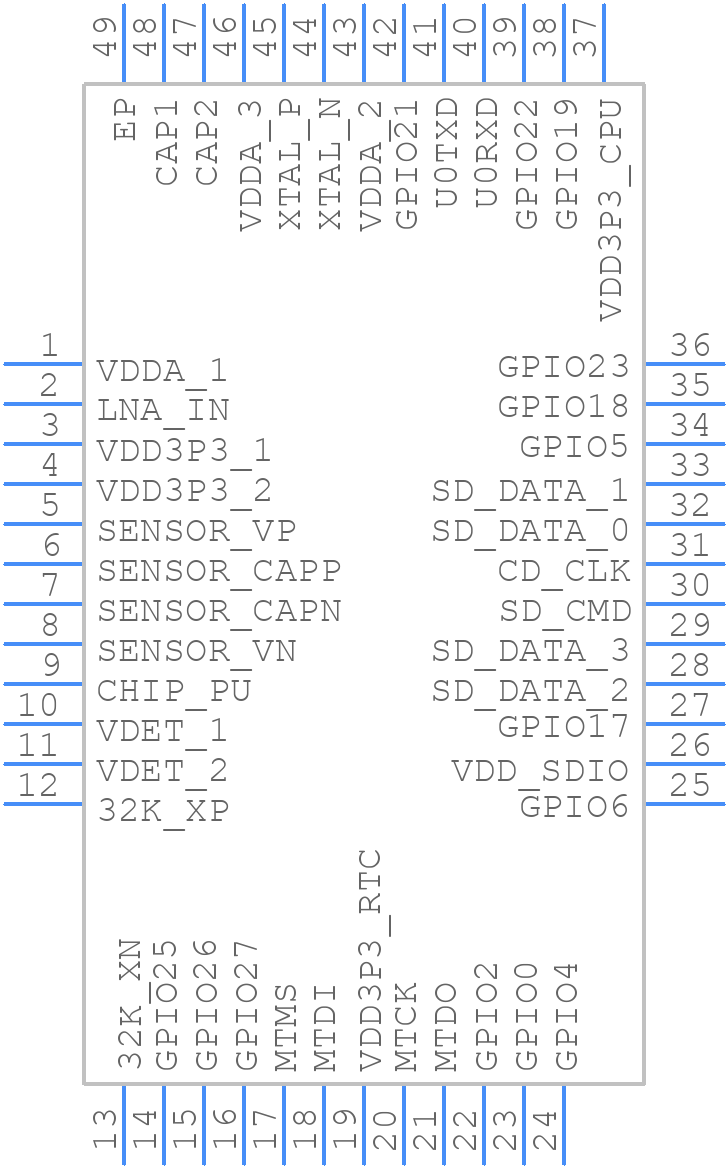

ESP32-D2WD - Espressif Systems - PCB symbol
click to zoom
PCB Footprints
ESP32-D2WD - Espressif Systems PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48 (5x5 mm)
click to zoom
3D Models
ESP32-D2WD - Espressif Systems - 3D model - Quad Flat No-Lead - QFN48 (5x5 mm)
click to zoom

ESP32-D2WD Details

  • Manufacturer Part Number:

    ESP32-D2WD

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-48

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Espressif Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N48

  • Length:

    5 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.2SQ,14

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    TSMC

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

ESP32-D2WD Frequently Asked Questions (FAQs)

  • The ESP32-D2WD can operate in a temperature range of -40°C to 85°C.
  • To configure the ESP32-D2WD for low power consumption, use the esp_pm API to set the power mode to light sleep or deep sleep, and adjust the clock frequency and voltage to minimize power consumption.
  • Yes, the ESP32-D2WD has a built-in antenna, but you can also use an external antenna by connecting it to the RF pin and configuring the Wi-Fi mode to use the external antenna.
  • To implement secure boot on the ESP32-D2WD, use the esp_secure_boot API to generate a secure boot key, and then configure the boot mode to use the secure boot key.
  • The ESP32-D2WD's Wi-Fi interface supports a maximum data transfer rate of 150 Mbps.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

ESP32-D2WD Overview

Use the download button to access the ESP32-D2WD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESP32, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
