ESP32-PICO-V3-02 - Espressif Systems

Description: RF System on a Chip - SoC [ENGINEERING SAMPLES ONLY] SiP Module, ESP32 ECO V3 with 8 MB flash and 2 MB PSRAM inside, dual-core MCU, Wi-Fi & Bluetooth combo

Download ESP32-PICO-V3-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

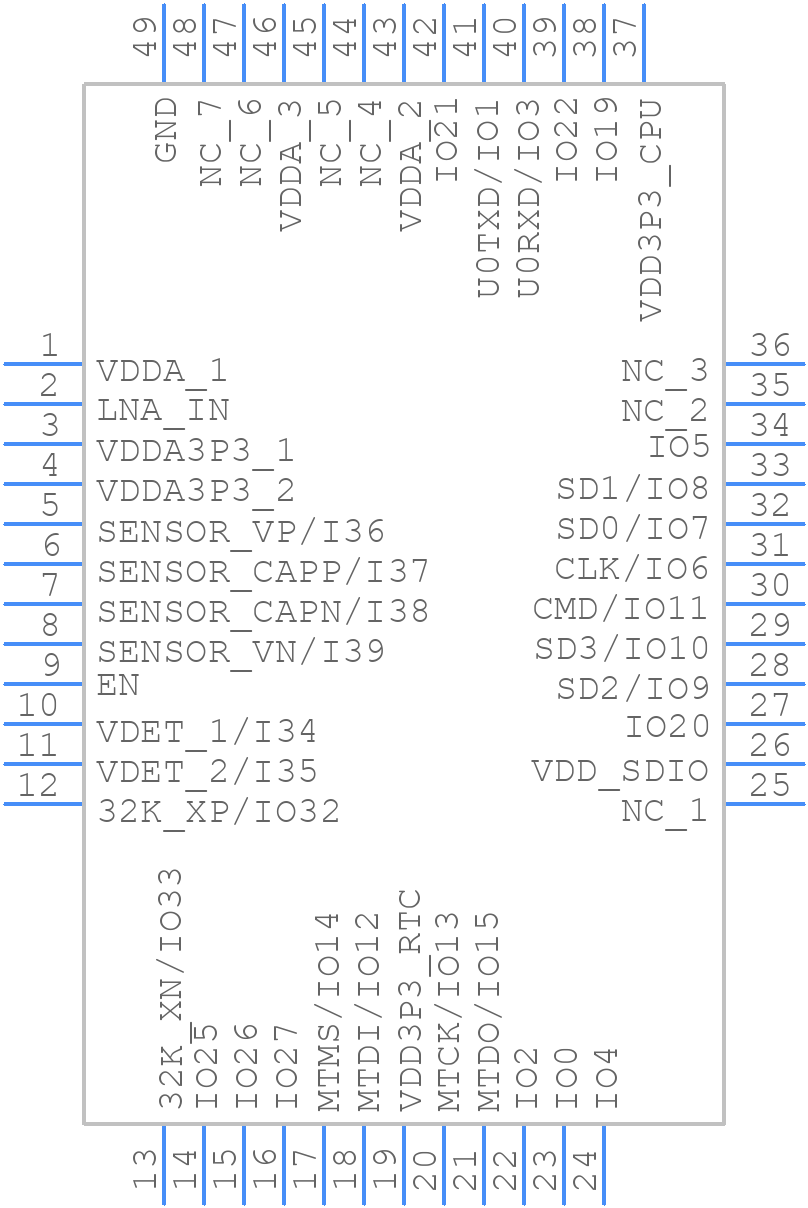

ESP32-PICO-V3-02 - Espressif Systems - PCB symbol
click to zoom
PCB Footprints

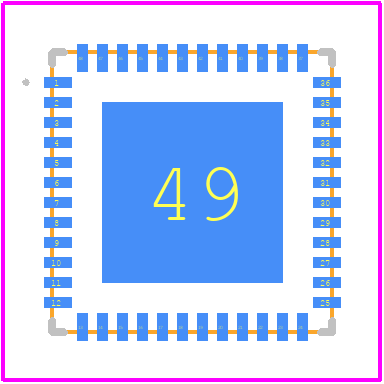

ESP32-PICO-V3-02 - Espressif Systems PCB footprint - Other - Other - ESP32-PICO-V3-02-15
click to zoom
3D Models
ESP32-PICO-V3-02 - Espressif Systems - 3D model - Other - ESP32-PICO-V3-02-15
click to zoom

ESP32-PICO-V3-02 Details

  • Manufacturer Part Number:

    ESP32-PICO-V3-02

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    PACKAGE-48

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Espressif Inc

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    1.21 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

ESP32-PICO-V3-02 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for ESP32-PICO-V3-02 is -40°C to 85°C.
  • To configure the ESP32-PICO-V3-02 for low power consumption, use the light sleep mode, disable Wi-Fi and Bluetooth when not in use, and adjust the CPU frequency and voltage according to your application's requirements.
  • Yes, the ESP32-PICO-V3-02 has a built-in antenna, but you can also use an external antenna by connecting it to the RF pin and configuring the Wi-Fi mode accordingly.
  • You can update the firmware on the ESP32-PICO-V3-02 using the ESP-IDF (IoT Development Framework) and the esptool.py command-line tool.
  • The maximum current consumption of the ESP32-PICO-V3-02 is approximately 500mA during Wi-Fi transmission and 200mA during Bluetooth transmission.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ESP32-PICO-V3-02 Overview

Use the download button to access the ESP32-PICO-V3-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESP32, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
