ESP32-WROOM-32UE - Espressif Systems

Description: Module; Wi-Fi; transceiver; 2412-2484MHz; UART/SPI/SDIO/I2C/LED PWM/Motor PWM/I2S/IR/GPIO/, 3V ~ 3.6V, -40°C ~ 85°C

Download ESP32-WROOM-32UE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

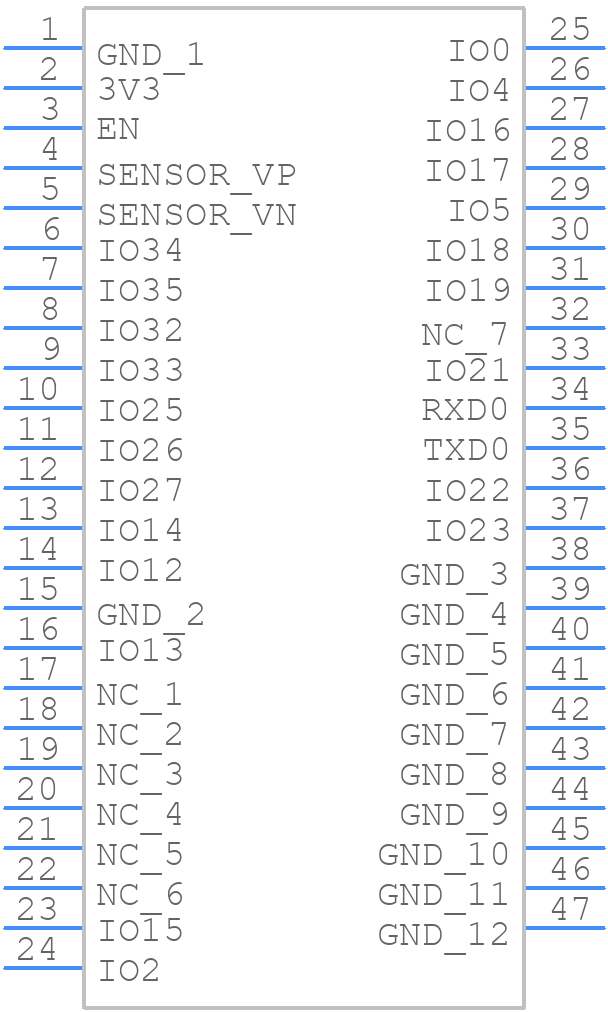

ESP32-WROOM-32UE - Espressif Systems - PCB symbol
click to zoom
PCB Footprints

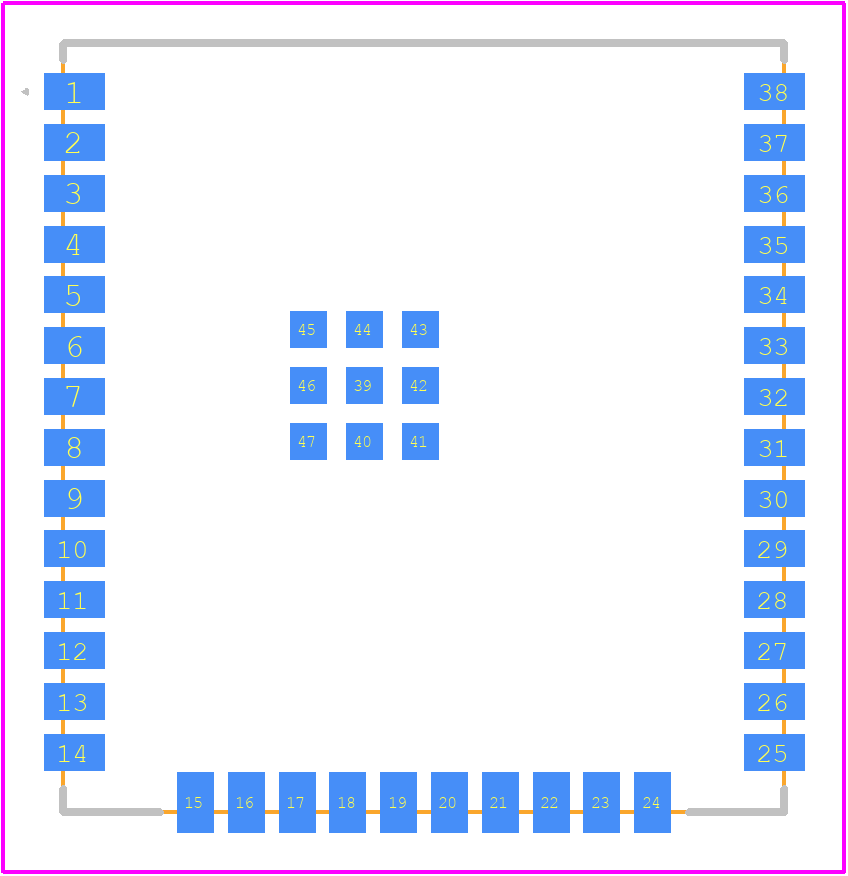

ESP32-WROOM-32UE - Espressif Systems PCB footprint - Other - Other - 18mm x 19.2mm x 3.35mm_2025-3
click to zoom
3D Models
ESP32-WROOM-32UE - Espressif Systems - 3D model - Other - 18mm x 19.2mm x 3.35mm_2025-3
click to zoom

ESP32-WROOM-32UE Details

  • Manufacturer Part Number:

    ESP32-WROOM-32UE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    PACKAGE-38

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Espressif Inc

  • JESD-30 Code:

    R-XXMA-N38

  • Length:

    19.2 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    3.35 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    UNSPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    18 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

ESP32-WROOM-32UE Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ESP32-WROOM-32UE is -40°C to 85°C.
  • To configure the ESP32-WROOM-32UE for low power consumption, use the esp_pm API to set the power mode to light sleep or deep sleep, and adjust the Wi-Fi and Bluetooth settings to minimize power consumption.
  • Yes, the ESP32-WROOM-32UE has a U.FL connector for connecting an external antenna. Make sure to follow the antenna design guidelines and impedance matching requirements.
  • You can update the firmware on the ESP32-WROOM-32UE using the ESP-IDF SDK and the esptool.py command-line tool. Follow the instructions in the ESP-IDF documentation for the specific update procedure.
  • The maximum current consumption of the ESP32-WROOM-32UE is approximately 500mA during Wi-Fi transmission and 200mA during Bluetooth transmission.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ESP32-WROOM-32UE Overview

Use the download button to access the ESP32-WROOM-32UE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESP32, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
