The maximum operating temperature range for ESP8685H2 is -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
To optimize power consumption, use the low-power modes (e.g., Light Sleep, Deep Sleep, and Hibernate) provided by the ESP8685H2, and optimize your application's software to minimize CPU usage and radio transmission. Additionally, use a low-power oscillator and optimize the voltage regulator module (VRM) settings.
Yes, ESP8685H2 supports external antennas. You can connect an external antenna to the module's antenna pins, but ensure that the antenna is designed for the frequency band of operation (e.g., 868 MHz) and meets the impedance matching requirements.
Espressif provides a secure boot mechanism and over-the-air (OTA) update features in the ESP8685H2. You can use the ESP-IDF framework to implement secure boot and OTA updates. Additionally, you can use digital signatures and encryption to ensure the authenticity and integrity of firmware updates.
The maximum transmit power of ESP8685H2 is +20 dBm (100 mW) for the 868 MHz frequency band, but this can be adjusted through software configuration to comply with regional regulations and optimize power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ESP8685H2 Overview

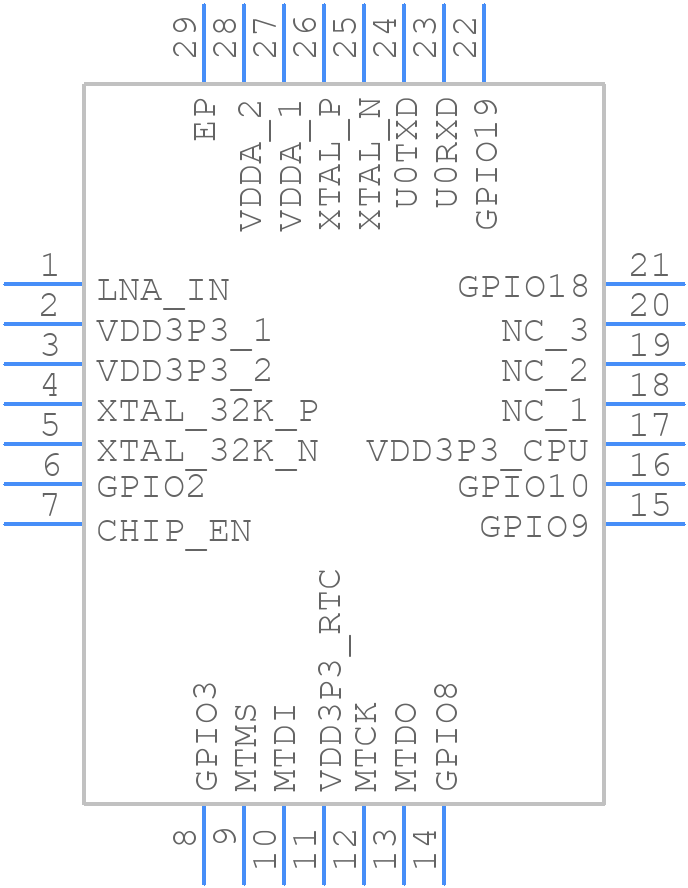

Use the download button to access the ESP8685H2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESP86,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
