The maximum operating temperature range for ESP8685H4 is -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C.
To configure the ESP8685H4 for low power consumption, you can use the light sleep mode, which reduces power consumption to around 1mA. You can also use the deep sleep mode, which reduces power consumption to around 10uA. Additionally, you can disable unnecessary peripherals and use a low-power Wi-Fi mode.
Yes, the ESP8685H4 has a built-in antenna, but you can also use an external antenna. The module has a U.FL connector for connecting an external antenna. Make sure to follow the antenna design guidelines and impedance matching requirements to ensure optimal performance.
To implement secure boot and flash encryption on the ESP8685H4, you need to use the ESP-IDF framework and follow the secure boot and flash encryption guidelines provided by Espressif. This involves generating a secure boot key, encrypting the firmware, and configuring the ESP8685H4 to use the secure boot and encryption features.
The maximum Wi-Fi transmission power of the ESP8685H4 is around 20dBm, but it can be adjusted to a lower value depending on the application requirements and regulatory constraints.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ESP8685H4 Overview

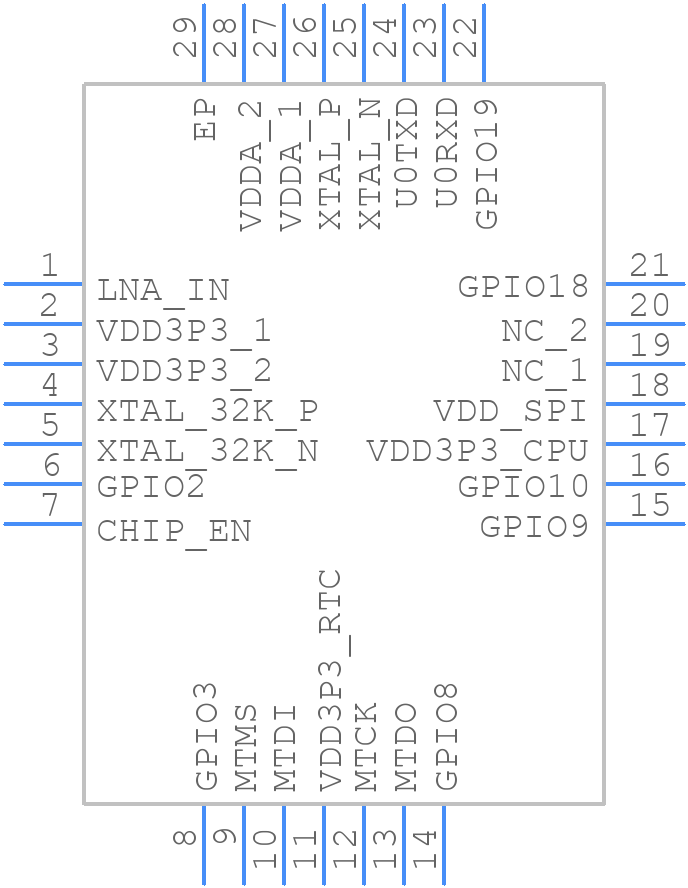

Use the download button to access the ESP8685H4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESP86,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
