ESQ-116-38-G-S - SAMTEC

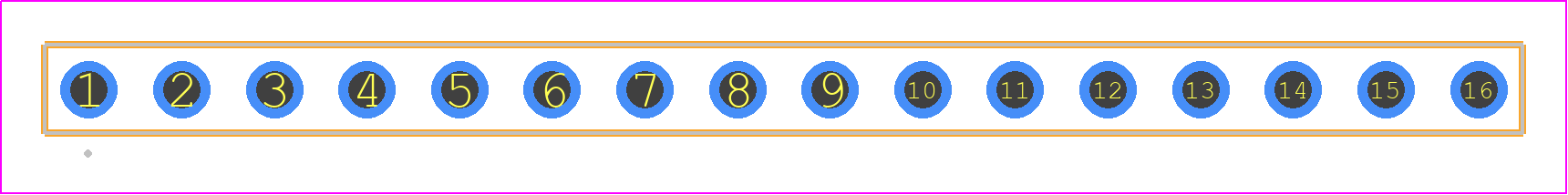

ESQ-116-38-G-S Details

• Manufacturer Part Number:

  ESQ-116-38-G-S

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  ROHS COMPLIANT

• Manufacturer:

  Samtec Inc

• YTEOL:

  0

• Additional Feature:

  LOW INSERTION FORCE

• Body Breadth:

  0.095 inch

• Body Depth:

  0.435 inch

• Body Length:

  1.62 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  GOLD (20) OVER NICKEL (50)

• Contact Finish Termination:

  GOLD FLASH OVER NICKEL (50)

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  10 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulator Color:

  BLACK

• Insulator Material:

  THERMOPLASTIC

• JESD-609 Code:

  e4

• MIL Conformance:

  NO

• Manufacturer Series:

  ESQ

• Mating Contact Pitch:

  0.1 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -65 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• Plating Thickness:

  20u inch

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL, CSA

• Reliability:

  COMMERCIAL

• Subcategory:

  Headers and Edge Type Connectors

• Terminal Length:

  0.29 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  16
