ESQ-120-14-H-D - SAMTEC

Description: 40 Position, Elevated Socket Strip, 0.100" Pitch

Download ESQ-120-14-H-D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ESQ-120-14-H-D - SAMTEC - PCB symbol
click to zoom
PCB Footprints

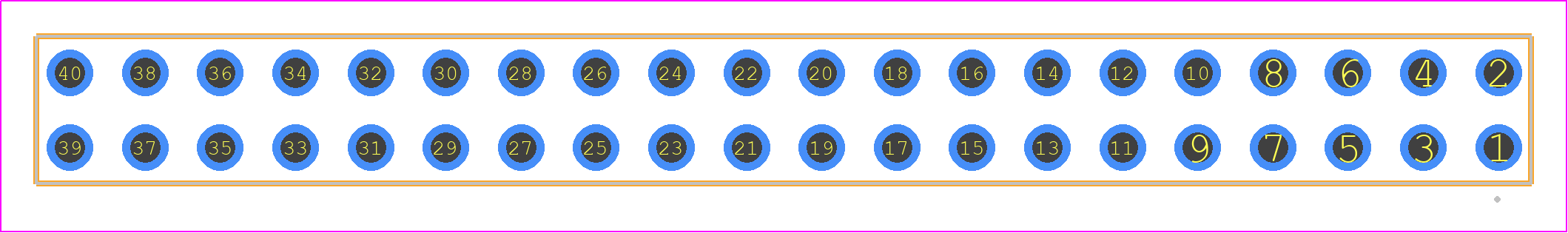

ESQ-120-14-H-D - SAMTEC PCB footprint - Other - Other - ESQ-120-Y-X-D
click to zoom
3D Models
ESQ-120-14-H-D - SAMTEC - 3D model - Other - ESQ-120-Y-X-D
click to zoom

ESQ-120-14-H-D Details

  • Manufacturer Part Number:

    ESQ-120-14-H-D

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    3 Weeks, 1 Day

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    6.9 A

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    40

ESQ-120-14-H-D Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the ESQ-120-14-H-D connector is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.
  • Yes, the ESQ-120-14-H-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
  • The maximum operating temperature for the ESQ-120-14-H-D connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
  • Yes, the ESQ-120-14-H-D connector is compatible with lead-free soldering processes. Samtec recommends following their guidelines for lead-free soldering and ensuring proper soldering techniques to ensure reliable connections.
  • The ESQ-120-14-H-D connector is not designed for use in humid or wet environments. Samtec recommends using a connector with a higher ingress protection rating (IP67 or higher) for applications that require resistance to moisture or water.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ESQ-120-14-H-D Overview

Use the download button to access the ESQ-120-14-H-D schematic symbol, PCB footprint, and 3D model.
