ESQT-103-03-F-D-310 footprint, schematic symbol and 3D model by SAMTEC

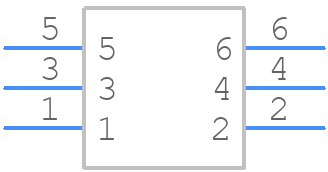

Symbol

click to zoom

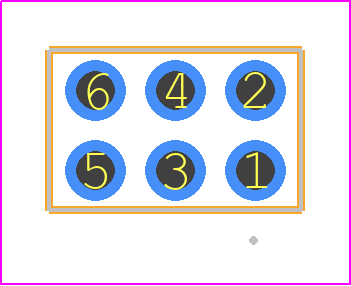

PCB Footprints

ESQT-103-03-F-D-310 - SAMTEC PCB footprint - Other - Other - ESQT-103-03-X-D-YYY

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ESQT-103-03-F-D-310
Part Number ESQT-103-03-F-D-310
Manufacturer SAMTEC
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - ESQT-103-03-X-D-YYY
Released Date Jun 19, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ESQT-103-03-F-D-310 Details

Manufacturer Part Number:
ESQT-103-03-F-D-310
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
FLEXYZ
Body/Shell Style:
SOCKET
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
GOLD FLASH OVER NICKEL (50)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Rated Current (Signal):
4.5 A
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
6

ESQT-103-03-F-D-310 Frequently Asked Questions (FAQs)

The recommended torque for the screws on ESQT-103-03-F-D-310 is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the ESQT-103-03-F-D-310 is designed to withstand high-vibration environments. Samtec's testing shows that it can survive up to 20 Gs of vibration in the Z-axis and 10 Gs in the X and Y axes.
The ESQT-103-03-F-D-310 is rated for operation in temperatures ranging from -55°C to 125°C and can withstand humidity up to 95% RH. However, it's recommended to consult Samtec's environmental testing reports for specific details.
The ESQT-103-03-F-D-310 has a mating cycle life of at least 500 cycles, according to Samtec's testing and reliability data.
While the ESQT-103-03-F-D-310 is designed for 1.57 mm PCB thickness, Samtec recommends consulting their application notes for guidance on using it with other PCB thicknesses. In general, the connector can accommodate PCB thicknesses from 1.2 mm to 2.4 mm.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ESQT-103-03-F-D-310 Overview

Use the download button to access the ESQT-103-03-F-D-310 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ESQT-, or try a keyword search, such as Headers and Edge Type Connectors
