ESQT-105-03-F-D-309 - SAMTEC

Description: Headers & Wire Housings 2.00 mm FleXYZ Flexible Elevated Socket Strip

Download ESQT-105-03-F-D-309 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ESQT-105-03-F-D-309 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

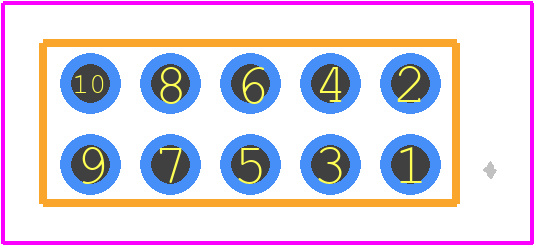

ESQT-105-03-F-D-309 - SAMTEC PCB footprint - Other - Other - ESQT-105-03-F-D-309-1
click to zoom
3D Models
ESQT-105-03-F-D-309 - SAMTEC - 3D model - Other - ESQT-105-03-F-D-309-1
click to zoom

ESQT-105-03-F-D-309 Details

  • Manufacturer Part Number:

    ESQT-105-03-F-D-309

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Rated Current (Signal):

    4.5 A

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

ESQT-105-03-F-D-309 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the ESQT-105-03-F-D-309 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
  • Yes, the ESQT-105-03-F-D-309 connector is designed to withstand vibration and shock according to IEC 61373 Cat. 2 and EN 61373 Cat. 2 standards. However, it's recommended to consult with Samtec's technical support for specific application requirements.
  • The maximum operating temperature range for the ESQT-105-03-F-D-309 connector is -55°C to +125°C, according to the datasheet. However, it's recommended to consult with Samtec's technical support for specific application requirements.
  • Yes, the ESQT-105-03-F-D-309 connector is RoHS and REACH compliant, as stated in Samtec's environmental compliance documentation.
  • The recommended mating cycle for the ESQT-105-03-F-D-309 connector is 500 cycles, according to Samtec's application notes.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ESQT-105-03-F-D-309 Overview

Use the download button to access the ESQT-105-03-F-D-309 schematic symbol, PCB footprint, and 3D model.
