The recommended torque for the screws on ESQT-125-03-L-D-310 is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's general guidelines for screw torque.
Yes, the ESQT-125-03-L-D-310 is designed to withstand high-vibration environments. Samtec's ESQT series is tested to meet the IEC 61373 Cat. 2 vibration standard, making it suitable for applications with high vibration levels.
The ESQT-125-03-L-D-310 has an operating temperature range of -55°C to +125°C. However, it's essential to note that the temperature rating may vary depending on the specific application and the materials used in the system. It's recommended to consult with Samtec's technical support or a qualified engineer to ensure the connector meets the specific temperature requirements of your application.
The ESQT-125-03-L-D-310 has a mating cycle life of at least 500 cycles, according to Samtec's specifications. However, the actual mating cycle life may vary depending on the application, usage, and environmental conditions.
Yes, the ESQT-125-03-L-D-310 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for hazardous substances in electrical and electronic equipment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ESQT-125-03-L-D-310 Overview

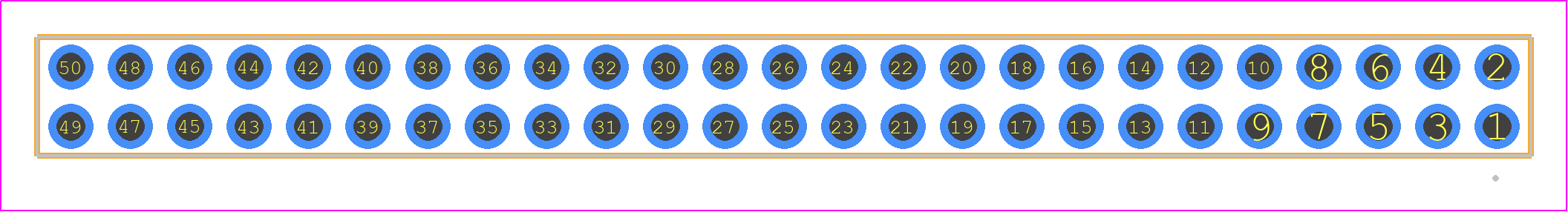

Use the download button to access the ESQT-125-03-L-D-310 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ESQT-,
or try a keyword search, such as Headers and Edge Type Connectors
