ESW-105-34-L-D - SAMTEC

ESW-105-34-L-D Details

• Manufacturer Part Number:

  ESW-105-34-L-D

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Malaysia, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Factory Lead Time:

  1 Week

• Manufacturer:

  Samtec Inc

• YTEOL:

  8

• Additional Feature:

  RATED CURRENT(POWER):5.2A

• Body Breadth:

  0.195 inch

• Body Depth:

  0.635 inch

• Body Length:

  0.52 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  RECTANGULAR POWER CONNECTOR

• Contact Finish Mating:

  GOLD

• Contact Finish Termination:

  Tin (Sn) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Durability:

  100 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYESTER

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mating Information:

  MULTIPLE MATING PARTS ARE AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

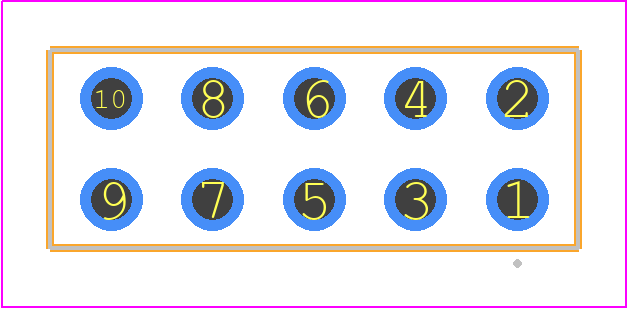

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  10u inch

• Rated Current (Power):

  5.2 A

• Reference Standard:

  UL

• Terminal Length:

  0.28 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  10

• UL Flammability Code:

  94V-0
