ESW-117-13-F-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

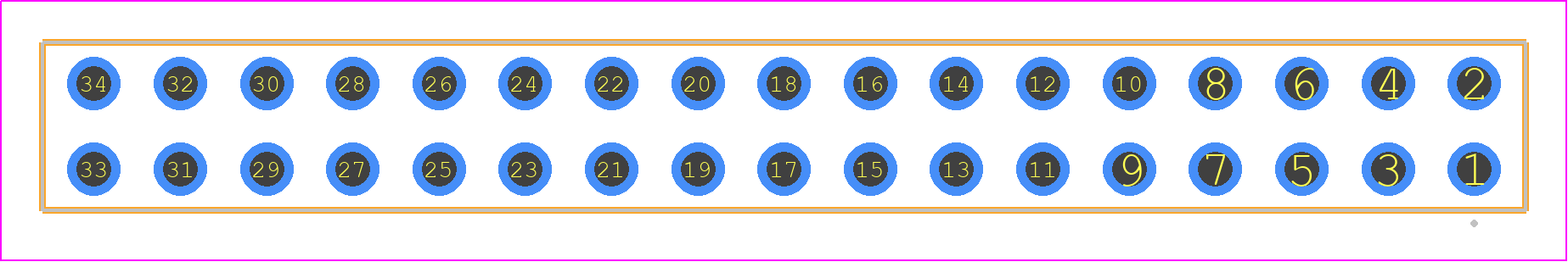

ESW-117-13-F-D - SAMTEC PCB footprint - Other - Other - ESW-117-XX-Y-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ESW-117-13-F-D
Part Number ESW-117-13-F-D
Manufacturer SAMTEC
Pin Count 34
Part Category Connector
Package Category Other
Footprint Name Other - ESW-117-XX-Y-D
Released Date Jun 26, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ESW-117-13-F-D Details

Manufacturer Part Number:
ESW-117-13-F-D
Manufacturer:
Samtec Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ESW-117-13-F-D Overview

Use the download button to access the ESW-117-13-F-D schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ESW-1, or try a keyword search, such as Power Connectors
