ET60T-D02-0-00-000-L-R1-S footprint, schematic symbol and 3D model by SAMTEC

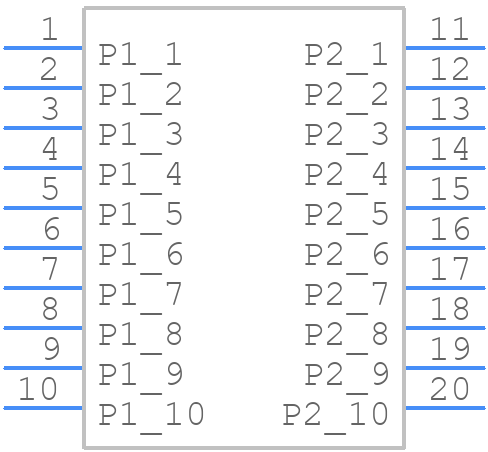

Symbol

click to zoom

PCB Footprints

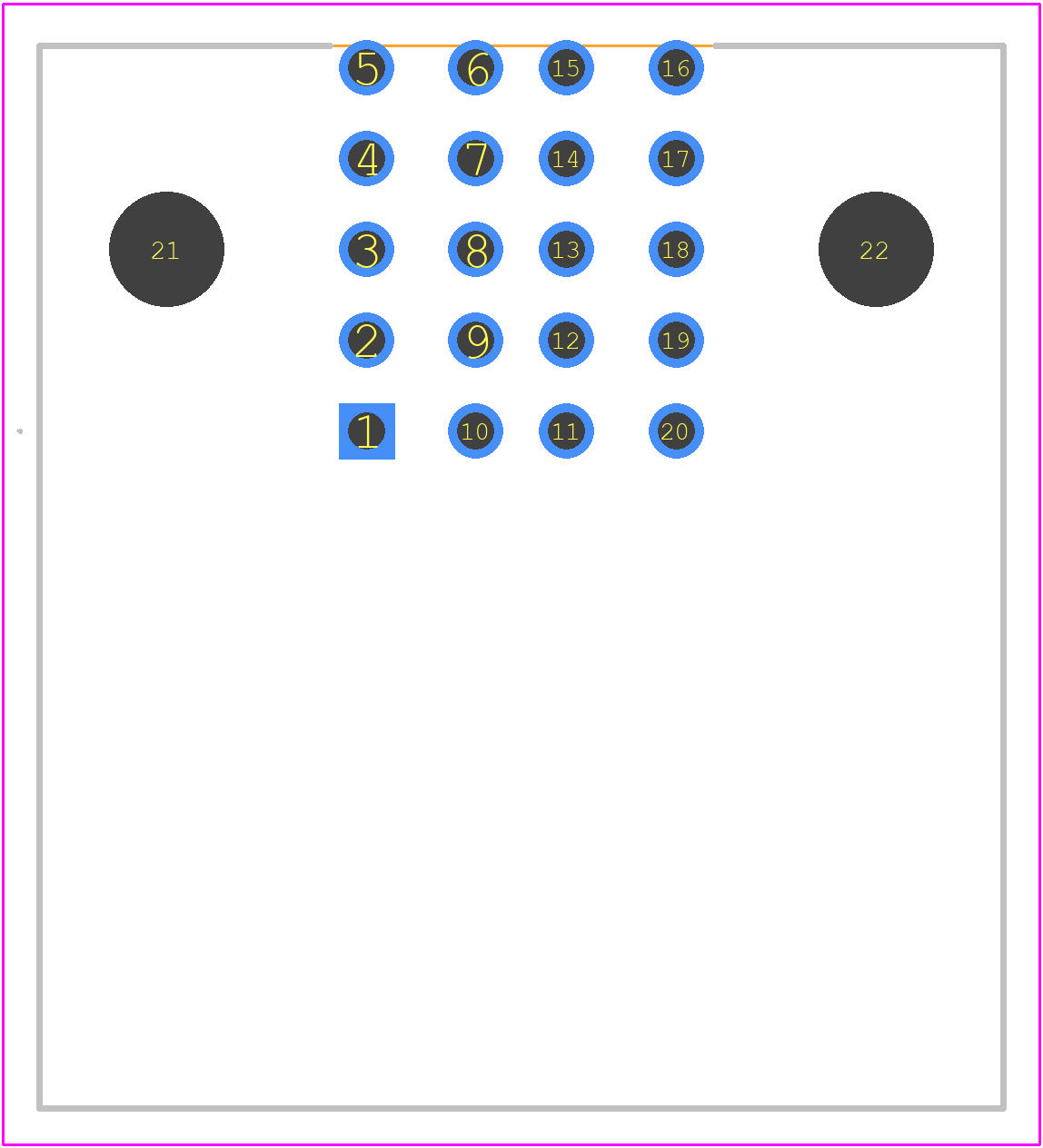

ET60T-D02-0-00-000-L-R1-S - SAMTEC PCB footprint - Other - Other - ET60T-D02-0-00-000-L-R1-S-1

click to zoom

3D Models

ET60T-D02-0-00-000-L-R1-S - SAMTEC - 3D model - Other - ET60T-D02-0-00-000-L-R1-S-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ET60T-D02-0-00-000-L-R1-S
Part Number ET60T-D02-0-00-000-L-R1-S
Manufacturer SAMTEC
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - ET60T-D02-0-00-000-L-R1-S-1
Released Date Sep 25, 2025
Last Modified Date Feb 5, 2026 6:11 AM UTC
Pinout / Pin List Click Here (Member Only)

ET60T-D02-0-00-000-L-R1-S Details

Manufacturer Part Number:
ET60T-D02-0-00-000-L-R1-S
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Samtec Inc
YTEOL:
7
Additional Feature:
RATED CURRENT(POWER): 60A
Body Breadth:
0.394 inch
Body Depth:
0.591 inch
Body Length:
1.04 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD (10)
Contact Finish Termination:
Matte Tin (Sn)
Contact Gender:
MALE
Contact Material:
COPPER ALLOY
Contact Style:
BLADE PIN-SKT
Empty Shell:
NO
Filter Feature:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
2

ET60T-D02-0-00-000-L-R1-S Frequently Asked Questions (FAQs)

The recommended mating sequence for the ET60T-D02-0-00-000-L-R1-S connector is to mate the guides first, followed by the contacts. This ensures proper alignment and prevents damage to the connector.
Yes, the ET60T-D02-0-00-000-L-R1-S connector is designed to withstand high-vibration environments. It features a ruggedized design and secure screw-machined contacts that can tolerate vibrations up to 20 G's.
The ET60T-D02-0-00-000-L-R1-S connector is designed to operate in a wide temperature range of -55°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and Samtec's application notes for specific guidance on using this connector in harsh environments.
The maximum current rating for each contact in the ET60T-D02-0-00-000-L-R1-S connector is 2.5 Amps. However, it's crucial to consider the overall system design, wire gauge, and thermal management to ensure safe and reliable operation.
The ET60T-D02-0-00-000-L-R1-S connector is designed for use with standard 1.57 mm (0.062 in) thick PCBs. While it may be possible to use it with different PCB thicknesses or materials, it's essential to consult with Samtec's technical support team to ensure compatibility and reliability.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ET60T-D02-0-00-000-L-R1-S Overview

Use the download button to access the ET60T-D02-0-00-000-L-R1-S schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ET60T, or try a keyword search, such as Power Connectors
