ET60T-D02-0-00-D02-L-R1-S-H - SAMTEC

Description: Power to the Board .100" EXTreme Ten60Power 60 Amp Signal/Power Combo Terminal Strip

Download ET60T-D02-0-00-D02-L-R1-S-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

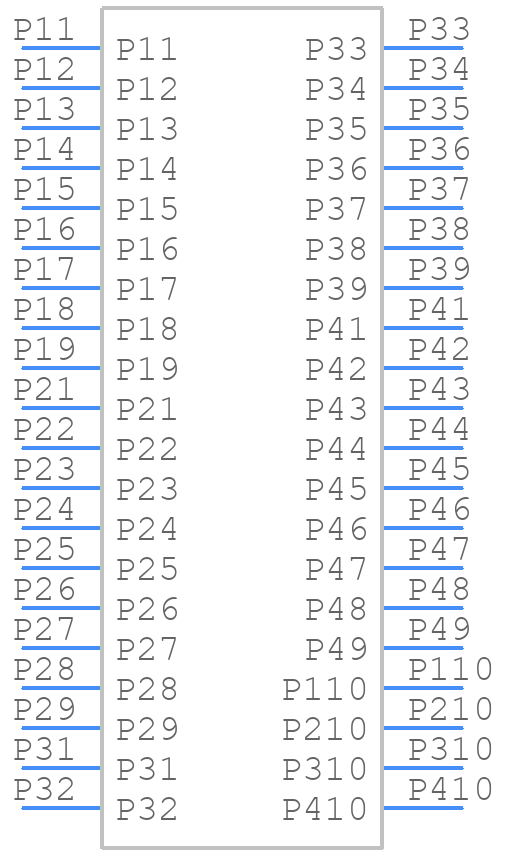

ET60T-D02-0-00-D02-L-R1-S-H - SAMTEC - PCB symbol
click to zoom
PCB Footprints

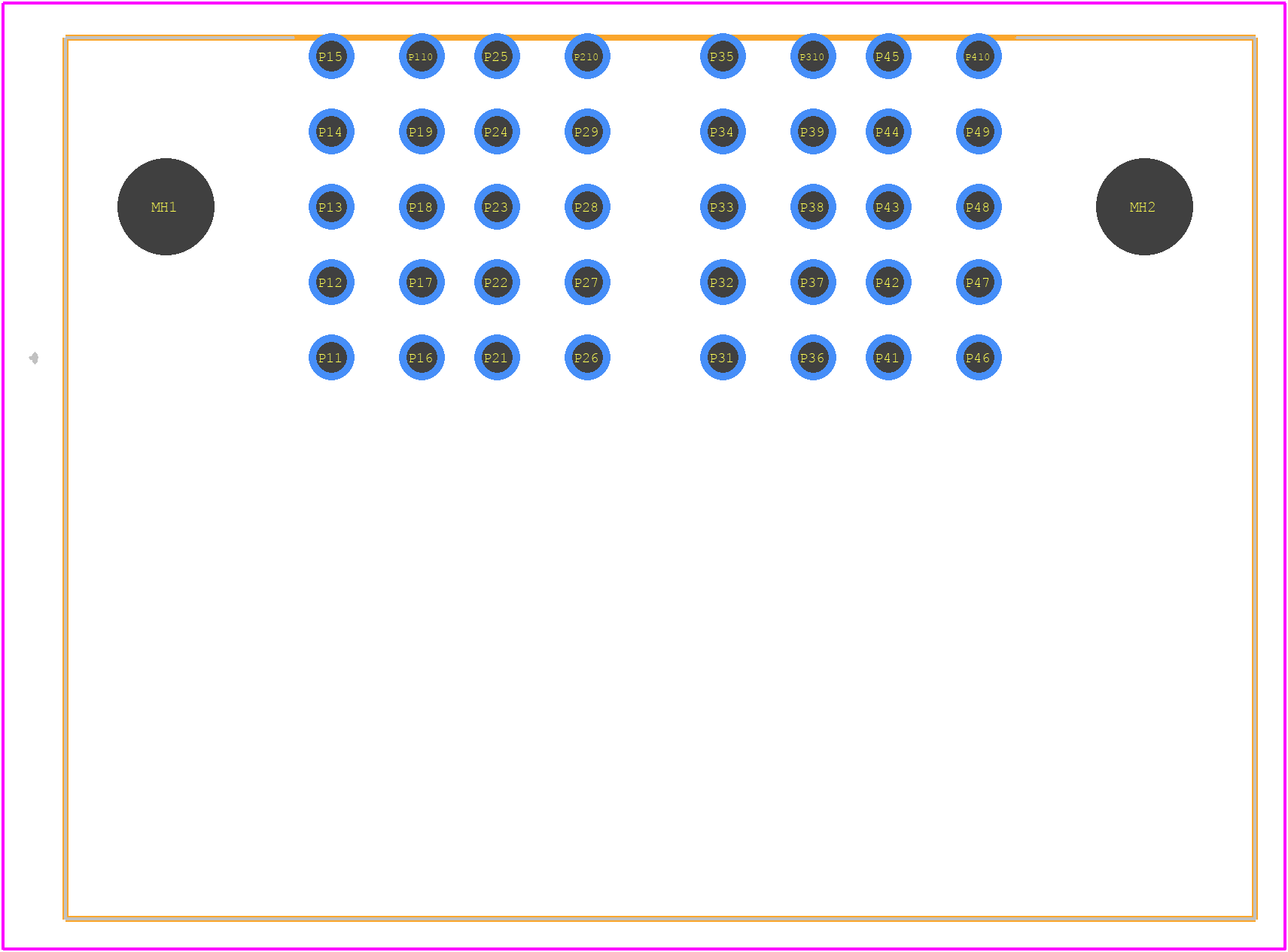

ET60T-D02-0-00-D02-L-R1-S-H - SAMTEC PCB footprint - Other - Other - ET60T-D02-0-00-D02-L-R1-S-H-1
click to zoom
3D Models
ET60T-D02-0-00-D02-L-R1-S-H - SAMTEC - 3D model - Other - ET60T-D02-0-00-D02-L-R1-S-H-1
click to zoom

ET60T-D02-0-00-D02-L-R1-S-H Details

  • Manufacturer Part Number:

    ET60T-D02-0-00-D02-L-R1-S-H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    7

  • Additional Feature:

    RATED CURRENT(POWER): 60A

  • Body Breadth:

    0.394 inch

  • Body Depth:

    0.586 inch

  • Body Length:

    1.555 inch

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    GOLD (10)

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Style:

    BLADE PIN-SKT

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e3

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

ET60T-D02-0-00-D02-L-R1-S-H Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the ET60T-D02-0-00-D02-L-R1-S-H connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the ET60T-D02-0-00-D02-L-R1-S-H connector is designed to withstand high-vibration environments. It features a ruggedized design and a secure locking mechanism to ensure reliable connections even in harsh conditions.
  • The ET60T-D02-0-00-D02-L-R1-S-H connector has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
  • Yes, the ET60T-D02-0-00-D02-L-R1-S-H connector is designed to be compatible with automated assembly processes, including pick-and-place machines and robotic assembly lines. Its compact design and precise tolerances make it ideal for high-volume production.
  • The typical lead time for delivery of the ET60T-D02-0-00-D02-L-R1-S-H connector varies depending on the quantity and availability. However, Samtec Inc typically offers a lead time of 2-4 weeks for standard orders, and expedited shipping options are available for urgent requirements.
