ET60T-D04-3-08-D04-S-R1-S - SAMTEC

Description: Power to the Board EXTreme Ten60Power(TM) 60 Amp Signal/Power Combo

Download ET60T-D04-3-08-D04-S-R1-S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ET60T-D04-3-08-D04-S-R1-S - SAMTEC - PCB symbol
click to zoom
PCB Footprints

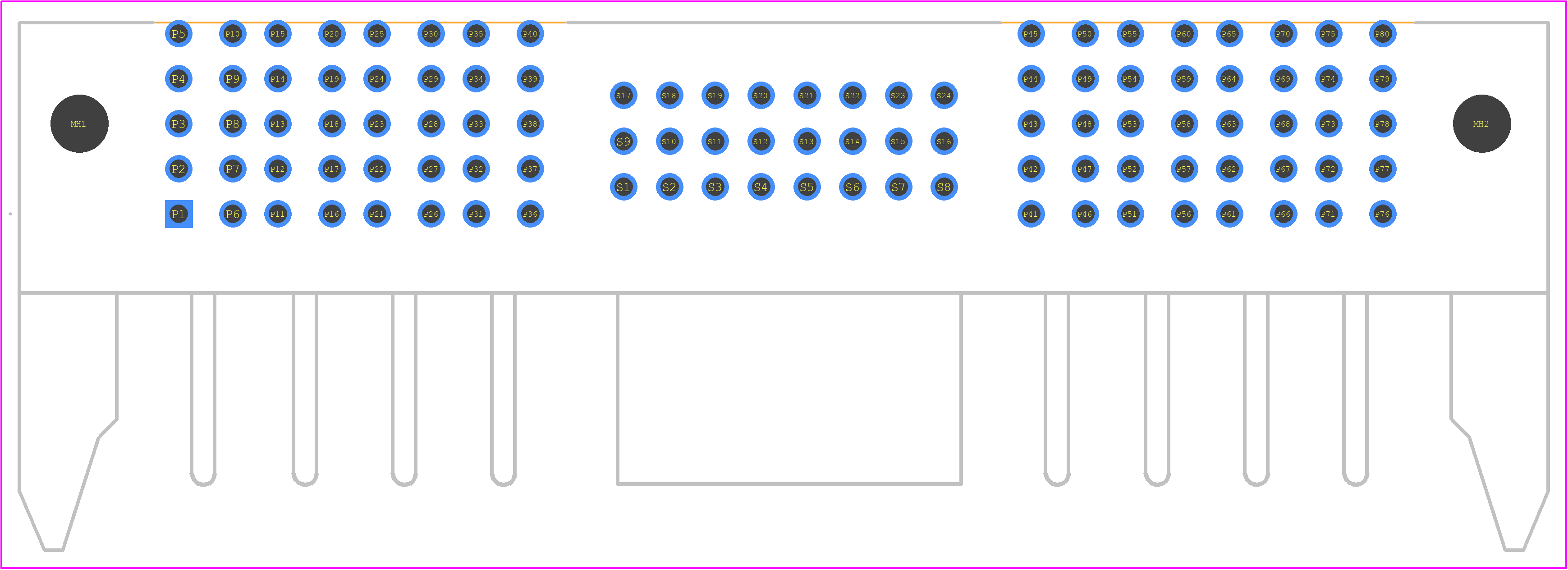

ET60T-D04-3-08-D04-S-R1-S - SAMTEC PCB footprint - Other - Other - ET60T-D04-3-08-D04-S-R1-S-2
click to zoom
3D Models
ET60T-D04-3-08-D04-S-R1-S - SAMTEC - 3D model - Other - ET60T-D04-3-08-D04-S-R1-S-2
click to zoom

ET60T-D04-3-08-D04-S-R1-S Details

  • Manufacturer Part Number:

    ET60T-D04-3-08-D04-S-R1-S

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Additional Feature:

    TERMINAL PITCH FOR DC POWER CONTACTS IS 5.5 MM

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    YES

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

ET60T-D04-3-08-D04-S-R1-S Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the ET60T-D04-3-08-D04-S-R1-S connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the ET60T-D04-3-08-D04-S-R1-S connector is designed to withstand high-vibration environments. The ruggedized design and secure locking mechanism ensure reliable connections even in harsh conditions.
  • The ET60T-D04-3-08-D04-S-R1-S connector has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
  • Yes, the ET60T-D04-3-08-D04-S-R1-S connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The recommended torque for the screw locks on the ET60T-D04-3-08-D04-S-R1-S connector is 0.5-1.5 Nm (4-12 in-lbs). Over-tightening can damage the connector, so it's essential to follow the recommended torque specification.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ET60T-D04-3-08-D04-S-R1-S Overview

Use the download button to access the ET60T-D04-3-08-D04-S-R1-S schematic symbol, PCB footprint, and 3D model.
