ETH1-460LD - COILCRAFT

Description: Audio Transformers / Signal Transformers ETH1 60W 4pairs PoE+ Magnetic Module

Download ETH1-460LD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

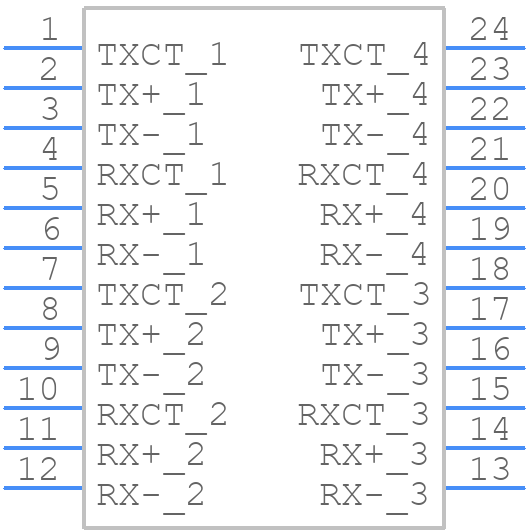

ETH1-460LD - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
ETH1-460LD - COILCRAFT PCB footprint - Other - Other - ETH1-460LD-4
click to zoom
3D Models
ETH1-460LD - COILCRAFT - 3D model - Other - ETH1-460LD-4
click to zoom

ETH1-460LD Details

  • Manufacturer Part Number:

    ETH1-460LD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.98

  • Additional Feature:

    WIDTH AND HEIGHT DIMENSION INCLUDES TERMINAL ALSO

  • Height:

    10.16 mm

  • Length:

    18.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    4

  • Number of Secondary Winding:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Power Rating:

    120 W

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper - Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    16.5 mm

ETH1-460LD Frequently Asked Questions (FAQs)

  • The recommended PCB land pattern for the ETH1-460LD is a rectangular pad with a size of 3.8 mm x 2.5 mm, with a 1.3 mm diameter hole in the center for the inductor's lead.
  • To minimize the impact of PCB layout and proximity to other components, keep the ETH1-460LD at least 2 mm away from other components, and use a solid ground plane underneath the inductor to reduce electromagnetic interference.
  • The ETH1-460LD can operate safely in temperatures ranging from -40°C to +125°C, but derating may be necessary for high-temperature applications.
  • Use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder to the inductor's leads. Ensure the solder flows smoothly and evenly, and avoid applying excessive heat or force.
  • Yes, the ETH1-460LD is suitable for high-frequency applications up to 1 GHz, but be aware that the inductor's impedance and Q factor may vary with frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ETH1-460LD Overview

Use the download button to access the ETH1-460LD schematic symbol, PCB footprint, and 3D model.
