ETQP5M6R8GAK - Panasonic

Description: Series/Type: Power Choke Coil for Automotive-M (MC type), Size [L×Ｗ] (mm): 8.0×8.5, Height (mm): 5.4, Inductance (µH): 6.8, DC Resistance [Typ.] (at 20℃) (mΩ): 18, DC Resistance [max.] (at 20℃) (mΩ): 19.8, Rated Current [Typ.] (ΔT=40K, FR4, t=1.6 mm,　Four-layer PWB) (A): 7.7, Rated Current [Typ.] (ΔT=40K, High heat dissipation PWB) (A): 9.1, Rated Current [Typ.] (ΔL=–30%) (A): 12.8, Weight (Typ.) (g): 1.9, AEC-Q200 compliant

Download ETQP5M6R8GAK Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ETQP5M6R8GAK model

Email notifications will be applied after download.

Send part feedback

Symbol

ETQP5M6R8GAK - Panasonic - PCB symbol

PCB Footprints

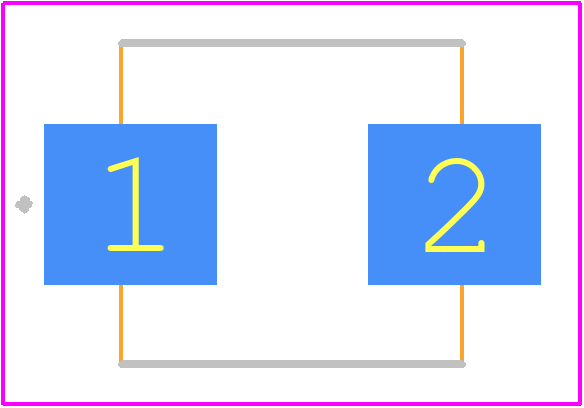

ETQP5M6R8GAK - Panasonic PCB footprint - Other - Other - ETQ-P5M100GAK
