Panasonic recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a minimum of 2°C (3.6°F) per second temperature rise and fall rate.
Yes, the ETQP8M1R0JFA capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
The ESR of the ETQP8M1R0JFA capacitor is not explicitly stated in the datasheet, but it can be estimated to be around 10-20 mΩ based on similar capacitors from Panasonic.
While the datasheet doesn't provide specific vibration ratings, Panasonic's X8M series capacitors, including the ETQP8M1R0JFA, are designed to withstand moderate vibration levels. However, it's recommended to consult with Panasonic or perform additional testing for high-vibration applications.
The MSL of the ETQP8M1R0JFA capacitor is MSL 2a, which means it can withstand exposure to moisture for up to 4 days at 30°C (86°F) and 60% relative humidity before soldering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ETQP8M1R0JFA Overview

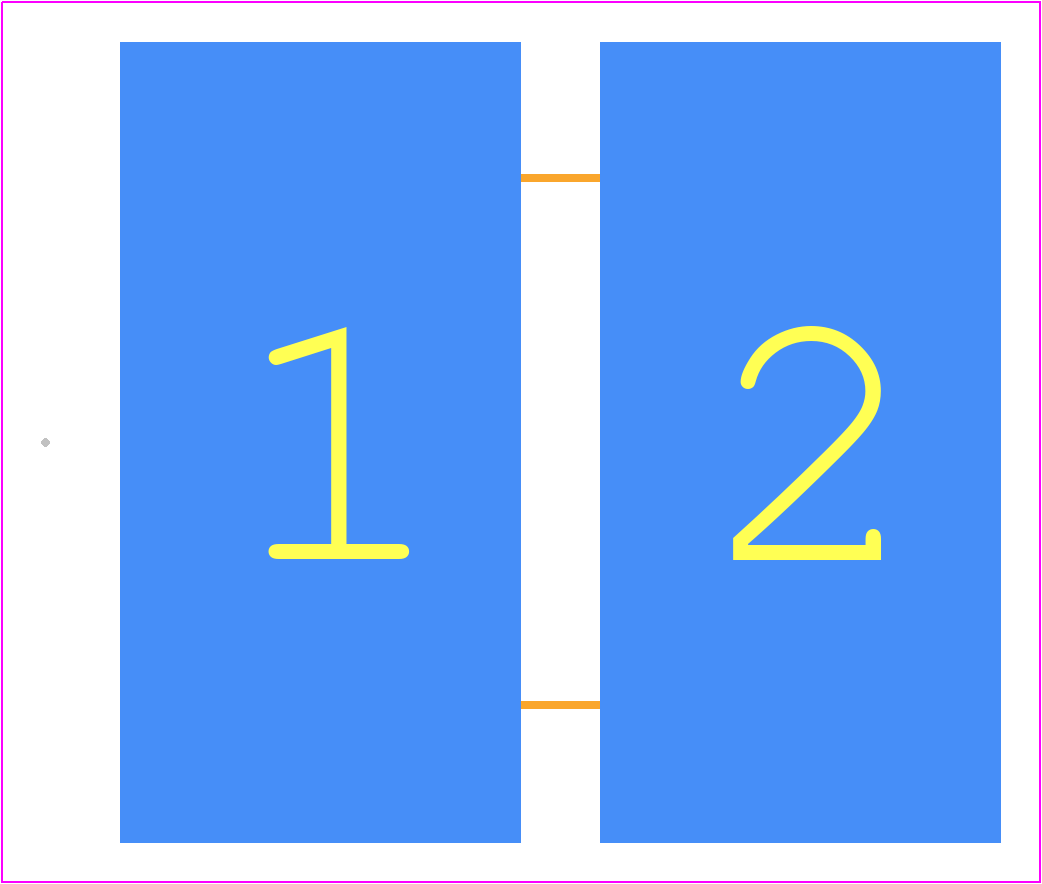

Use the download button to access the ETQP8M1R0JFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ETQP8,
or try a keyword search, such as Fixed Inductors
