The recommended land pattern for ETQP8MR68JFA is a rectangular pad with a size of 2.5mm x 1.5mm, with a non-solder mask defined (NSMD) pad shape. The pad should be centered on the component and have a solder mask clearance of 0.1mm.
To handle thermal management, ensure good thermal conductivity between the component and the PCB by using a thermal via or a thermal pad. Also, consider using a heat sink or a thermal interface material (TIM) to dissipate heat efficiently.
The maximum operating temperature range for ETQP8MR68JFA is -40°C to +125°C. However, it's recommended to operate the component within the specified temperature range for optimal performance and reliability.
Yes, ETQP8MR68JFA is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity) in the frequency range of 10Hz to 2000Hz. However, it's recommended to perform additional testing and validation for specific vibration profiles.
To ensure reliability in humid environments, follow proper storage and handling procedures, and consider applying a conformal coating to the PCB. Also, ensure that the component is properly soldered and that the PCB is designed with moisture-resistant materials.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ETQP8MR68JFA Overview

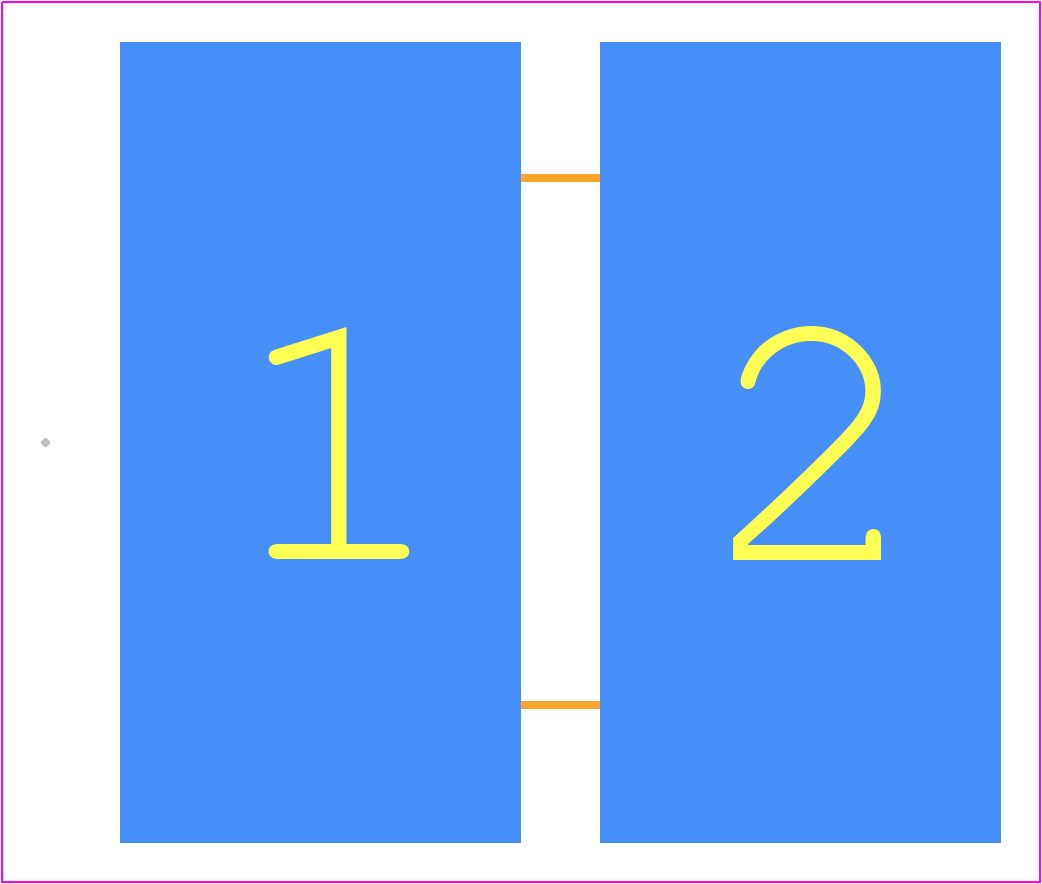

Use the download button to access the ETQP8MR68JFA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ETQP8,
or try a keyword search, such as Fixed Inductors
