ETQPDH240DTV Frequently Asked Questions (FAQs)

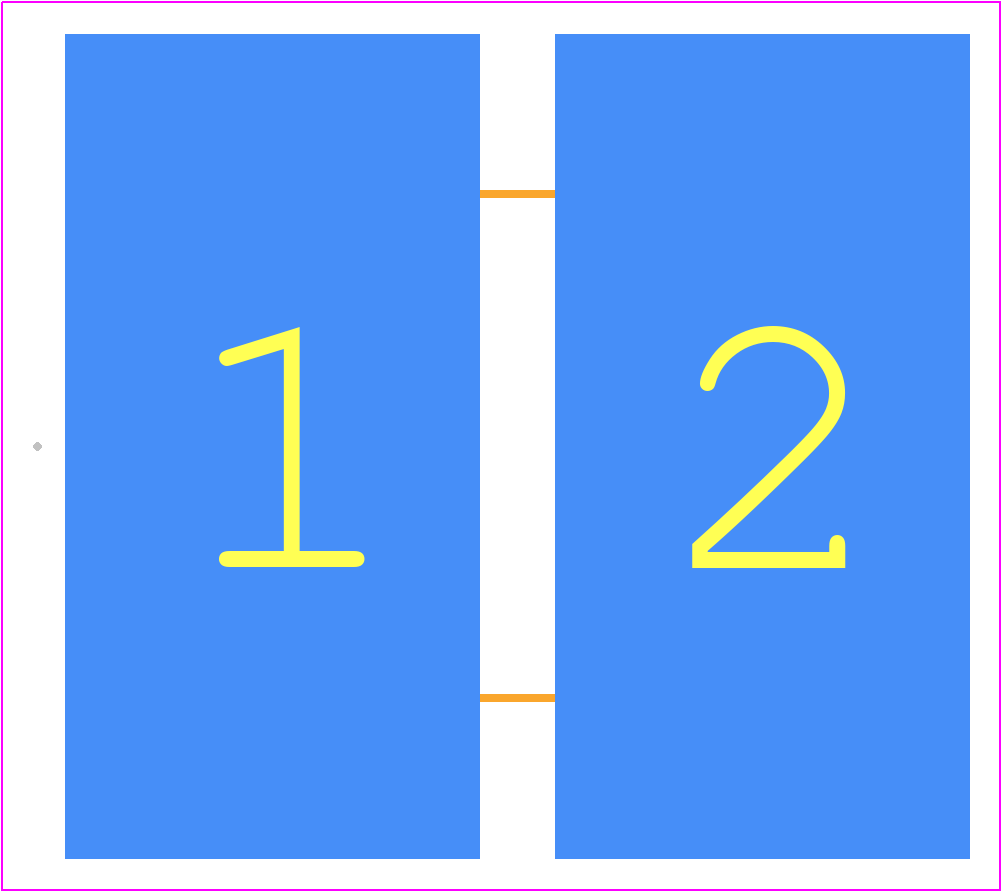

• What is the recommended PCB layout and thermal management for optimal performance?
  Panasonic recommends a 4-layer PCB with a dedicated ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the top and bottom layers. Additionally, a thermal pad on the bottom of the component should be connected to a heat sink or a thermal management system.
• How do I ensure reliable soldering and avoid damage during the assembly process?
  Panasonic recommends using a soldering iron with a temperature range of 250°C to 260°C and a soldering time of 3 seconds to 5 seconds. The component should be handled by the edges to avoid damage to the pins. A no-clean flux is recommended to prevent residue buildup.
• What is the maximum operating temperature range for this component?
  The ETQPDH240DTV is rated for operation from -40°C to 125°C, but Panasonic recommends derating the component for reliable operation above 85°C. Consult the datasheet for specific derating guidelines.
• How do I troubleshoot common issues such as output voltage deviations or oscillations?
  Common issues can be caused by improper PCB layout, inadequate decoupling, or incorrect input voltage. Check the PCB layout for signal integrity, ensure proper decoupling capacitors are used, and verify the input voltage is within the recommended range. Consult the datasheet and application notes for troubleshooting guidelines.
• Are there any specific EMI/EMC considerations for this component?
  Yes, the ETQPDH240DTV is a high-frequency component and requires proper EMI/EMC design considerations. Use a shielded enclosure, ensure proper grounding, and follow PCB layout guidelines to minimize radiation and susceptibility.
