ETXO-H33CL-125.000 - ECS

Description: TCXO Oscillators OSC TCXO 125.000MHZ 3.3V HCMOS S Enable/Disable HCMOS 3.3V +/-2.5ppm -30 C 85 C 30mA - Surface Mount 6-SMD, No Lead 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.067" (1.70mm)

Download ETXO-H33CL-125.000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

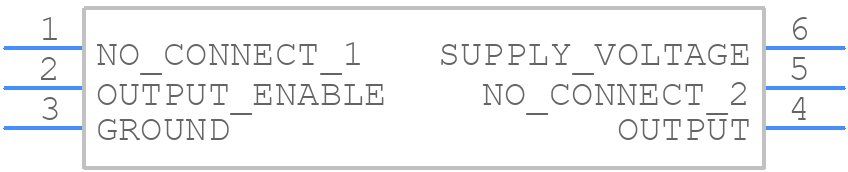

ETXO-H33CL-125.000 - ECS - PCB symbol
click to zoom
PCB Footprints
ETXO-H33CL-125.000 - ECS PCB footprint - Other - Other - ETXO-H33CL-125.000-1
click to zoom
3D Models
ETXO-H33CL-125.000 - ECS - 3D model - Other - ETXO-H33CL-125.000-1
click to zoom

ETXO-H33CL-125.000 Details

  • Manufacturer Part Number:

    ETXO-H33CL-125.000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 6 PIN

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ECS International Inc

  • YTEOL:

    6

  • Additional Feature:

    ENABLE/DISABLE FUNCTION

  • Aging:

    1 PPM/YEAR

  • Fall Time-Max:

    3 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    2.5%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    125 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Oscillator Type:

    HCMOS

  • Output Load:

    15 pF

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC6, 0.09, 53

  • Physical Dimension:

    3.2mm x 2.5mm x 1.6mm

  • Rise Time-Max:

    3 ns

  • Supply Current-Max:

    30 mA

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    45/55 %
