ETXO-H33CL-50.000 - ECS

Description: Crystals OSC TCXO 50.000MHZ 3.3V HCMOS SM Enable/Disable HCMOS 3.3V +/-2.5ppm -30 C 85 C 30mA - Surface Mount 6-SMD, No Lead 0.126" L x 0.098" W (3.20mm x 2.50mm) 0.067" (1.70mm)

Download ETXO-H33CL-50.000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

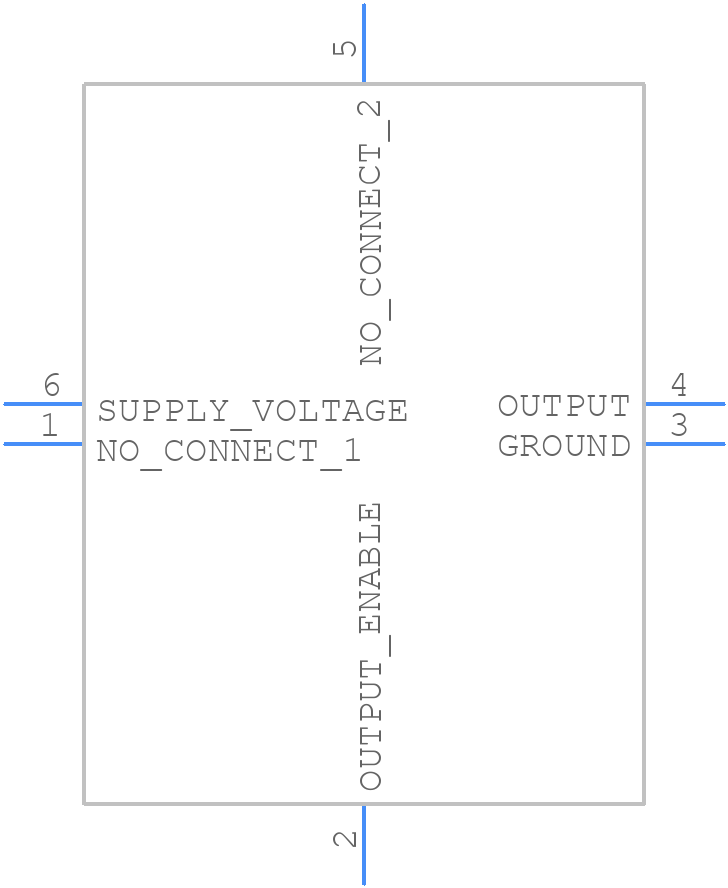

ETXO-H33CL-50.000 - ECS - PCB symbol
click to zoom
PCB Footprints
ETXO-H33CL-50.000 - ECS PCB footprint - Other - Other - ETXO-H33CL-50.000-2
click to zoom
3D Models
ETXO-H33CL-50.000 - ECS - 3D model - Other - ETXO-H33CL-50.000-2
click to zoom

ETXO-H33CL-50.000 Details

  • Manufacturer Part Number:

    ETXO-H33CL-50.000

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 6 PIN

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ECS International Inc

  • YTEOL:

    6

  • Additional Feature:

    ENABLE/DISABLE FUNCTION

  • Aging:

    1 PPM/YEAR

  • Fall Time-Max:

    3 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    2.5%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Oscillator Type:

    HCMOS

  • Output Load:

    15 pF

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC6, 0.09, 53

  • Physical Dimension:

    3.2mm x 2.5mm x 1.6mm

  • Rise Time-Max:

    3 ns

  • Supply Current-Max:

    26 mA

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    45/55 %

ETXO-H33CL-50.000 Frequently Asked Questions (FAQs)

  • The recommended drive level for the ETXO-H33CL-50.000 is 1-5 pF, but it's recommended to consult the datasheet or contact ECS International Inc for specific drive level requirements for your application.
  • To ensure reliable startup, make sure the power supply voltage is stable and within the recommended range, and that the oscillator is properly connected to a suitable load capacitor. Additionally, ensure that the oscillator is not subjected to excessive noise or EMI.
  • The ETXO-H33CL-50.000 is designed to withstand thermal shock, but the exact specifications may vary depending on the specific application and environment. Consult the datasheet or contact ECS International Inc for more information.
  • The ETXO-H33CL-50.000 is designed to operate in a variety of environments, but high-vibration applications may require additional consideration. Consult the datasheet or contact ECS International Inc to determine the oscillator's suitability for your specific application.
  • The recommended storage temperature for the ETXO-H33CL-50.000 is -40°C to 85°C. However, it's recommended to consult the datasheet or contact ECS International Inc for specific storage temperature requirements for your application.
