ETXO-L33CL-156.250 footprint, schematic symbol and 3D model by ECS

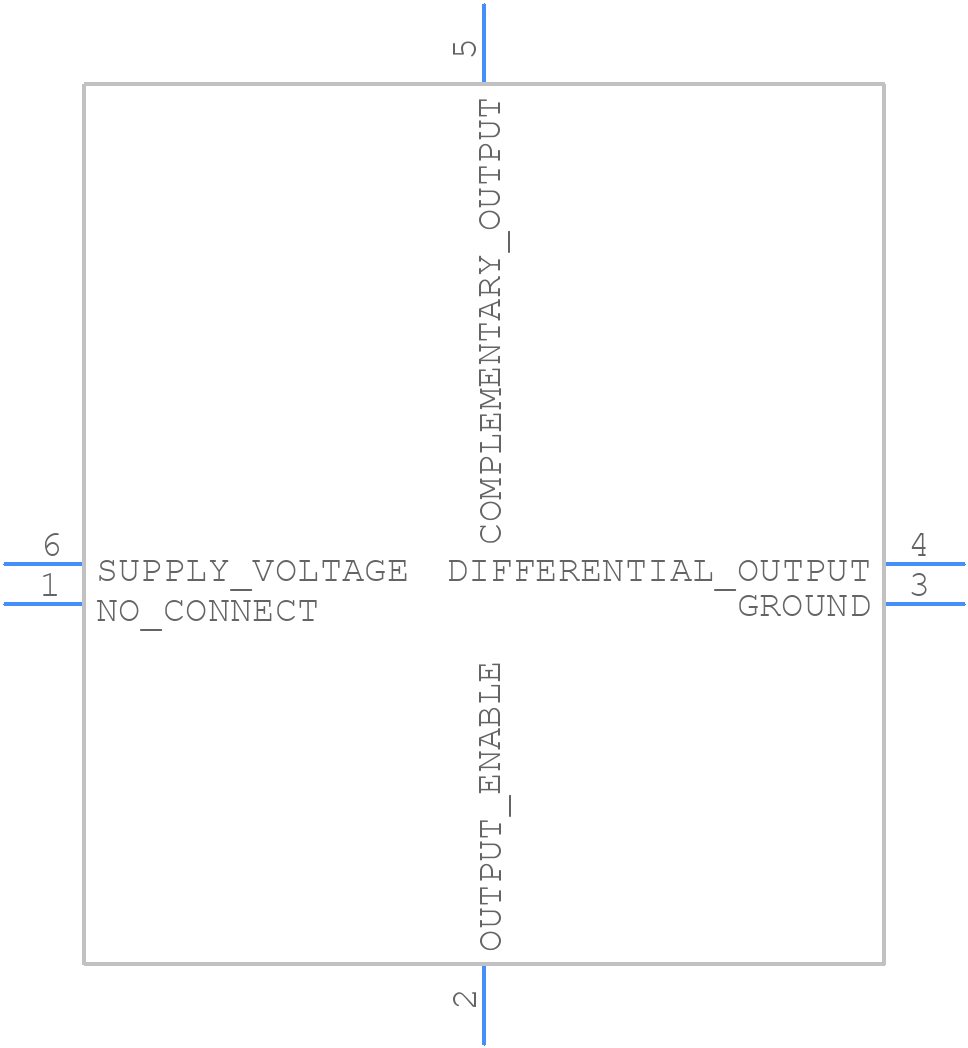

Symbol

PCB Footprints

3D Models

ETXO-L33CL-156.250 Details

Manufacturer Part Number:
ETXO-L33CL-156.250
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SMD, 6 PIN
Factory Lead Time:
18 Weeks
Manufacturer:
ECS International Inc
YTEOL:
6
Additional Feature:
ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; DIFFERENTIAL OUTPUT
Aging:
1 PPM/FIRST YEAR
Fall Time-Max:
0.4 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
2.5%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
156.25 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-30 °C
Oscillator Type:
LVDS
Package Equivalence Code:
LCC6,.1X.12,63/51
Physical Dimension:
3.2mm x 2.5mm x 1.6mm
Rise Time-Max:
0.4 ns
Supply Current-Max:
30 mA
Supply Voltage-Max:
3.465 V
Supply Voltage-Min:
3.135 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
45/55 %
Terminal Finish:
Gold (Au) - with Nickel (Ni) barrier

The recommended PCB layout for optimal performance of the ETXO-L33CL-156.250 involves placing the oscillator as close as possible to the microcontroller or ASIC, using a dedicated power supply line, and minimizing the distance between the oscillator output and the load. Additionally, it's recommended to use a ground plane under the oscillator and to avoid routing digital signals near the oscillator.
The ETXO-L33CL-156.250 oscillator is designed to be resistant to EMI and RFI. It has a metal lid that provides shielding, and the internal circuitry is designed to minimize radiation. Additionally, the oscillator's output is buffered to reduce electromagnetic radiation. However, it's still recommended to follow proper PCB design and layout practices to minimize EMI and RFI effects.
The maximum operating temperature range for the ETXO-L33CL-156.250 is -40°C to +85°C. However, it's recommended to operate the oscillator within the specified temperature range for optimal performance and stability.
Yes, the ETXO-L33CL-156.250 is designed to operate in high-vibration environments. It has a rugged design and is tested to withstand vibrations up to 20G. However, it's recommended to follow proper mounting and installation procedures to ensure the oscillator's performance and reliability.
The typical start-up time for the ETXO-L33CL-156.250 is around 10ms. However, this time may vary depending on the specific application and operating conditions.
