EV35-3.0-02-10M footprint, schematic symbol and 3D model by Schaffner

Symbol

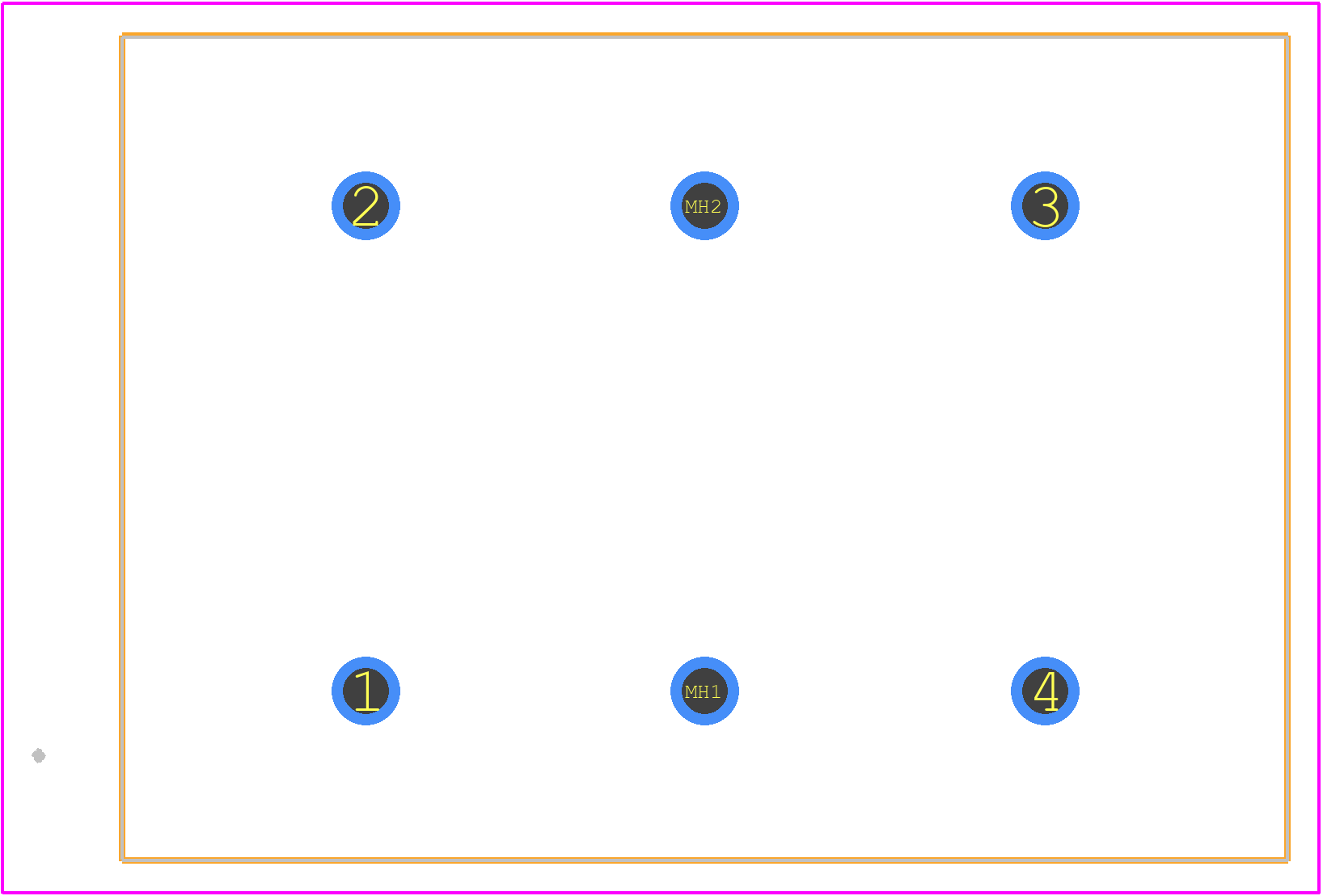

PCB Footprints

3D Models

EV35-3.0-02-10M Details

The operating temperature range of the EV35-3.0-02-10M is -40°C to +125°C, according to Schaffner's documentation.
Yes, the EV35-3.0-02-10M is designed for high-frequency applications up to 30 MHz, making it suitable for use in high-speed data lines, audio, and video applications.
The maximum current rating of the EV35-3.0-02-10M is 10A, according to the datasheet.
Yes, the EV35-3.0-02-10M is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
The typical insertion loss of the EV35-3.0-02-10M is around 0.5 dB at 100 MHz, according to Schaffner's documentation.

Expert Contribution

System Verified

Community Approved

Use the download button to access the EV35-3.0-02-10M schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EV35-, or try a keyword search, such as Mains Filters
