Panasonic recommends a 4-layer PCB with a solid ground plane, and a minimum of 1 oz copper thickness for optimal thermal performance and EMI reduction.
Use a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point of 217°C to 221°C. Apply a small amount of solder paste to the pads, and use a reflow oven with a peak temperature of 245°C.
The EVPBB2A9E000 can operate safely within a temperature range of -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
Store the EVPBB2A9E000 in a dry, cool place away from direct sunlight, and avoid exposing it to moisture, dust, or mechanical stress. Use anti-static packaging and handling procedures to prevent ESD damage.
Perform visual inspections for defects, and use a multimeter to verify the device's electrical characteristics. Apply a voltage of 1.5V to 3.5V to the input pins, and measure the output voltage and current to ensure they are within the specified ranges.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EVPBB2A9E000 Overview

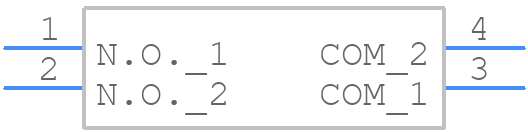

Use the download button to access the EVPBB2A9E000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EVPBB,
or try a keyword search, such as Keypad Switches
