EVQPLHA15 - Panasonic

Description: PANASONIC - EVQ-PLHA15 - SWITCH, TACTILE, SPST-NO, 20mA, 15VDC, SMD

Download EVQPLHA15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

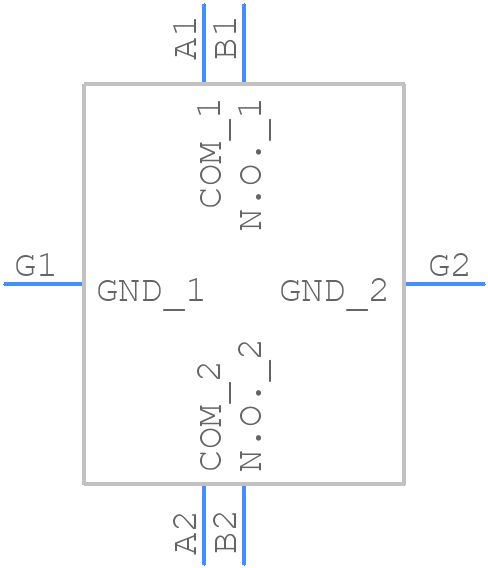

EVQPLHA15 - Panasonic - PCB symbol
click to zoom
PCB Footprints
EVQPLHA15 - Panasonic PCB footprint - Other - Other - EVQ-PLHA15-1
click to zoom
3D Models
EVQPLHA15 - Panasonic - 3D model - Other - EVQ-PLHA15-1
click to zoom

EVQPLHA15 Details

  • Manufacturer Part Number:

    EVQPLHA15

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Actuator Length:

    0.012 inch

  • Actuator Travel:

    0.254 mm

  • Actuator Type:

    PUSHBUTTON

  • Body Breadth:

    4.9 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    4.9 mm

  • Circuit Configuration:

    1X1

  • Contact Bounce Time-Max:

    8 ms

  • Contact Current(DC)-Max:

    0.02 A

  • Contact (DC) Max Rating R Load:

    .02A@15VDC

  • Contact Resistance:

    0.05 mΩ

  • Contact Voltage(DC)-Max:

    15 V

  • Dielectric Withstand Volts:

    250VAC V

  • Electrical Life:

    500000 Cycle(s)

  • Insulation Resistance:

    50000000 Ω

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Number of Switches:

    1

  • Operating Force-Max:

    2.1 N

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    BOX; TAPE AND REEL

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPST

  • Switch Type:

    KEYPAD SWITCH

  • Termination Type:

    SOLDER

EVQPLHA15 Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and minimal signal trace length is recommended. Ensure the input and output capacitors are placed close to the IC.
  • Use a minimum output capacitance of 10uF with an ESR of 1Ω or less. Additionally, ensure the input voltage is within the recommended range and the device is operated within the specified temperature range.
  • The maximum allowed input voltage ripple is 1Vp-p. Exceeding this value may affect the device's performance and stability.
  • The EVQPLHA15 is rated for operation up to 105°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management and consider derating the device's specifications accordingly.
  • Check the input voltage, output load, and PCB layout for any issues. Verify the device is operated within the specified temperature range and the input/output capacitors are properly selected. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EVQPLHA15 Overview

Use the download button to access the EVQPLHA15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EVQPL, or try a keyword search, such as Keypad Switches
