EYSHCNZWZ - Kaga Electronics USA

Description: Bluetooth Modules - 802.15.1 BLE 5.0 (2Mbps mode) with antenna, ARM M4F 64kB RAM, 9.6 x 12.9 x 2.0 mm module

Download EYSHCNZWZ Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EYSHCNZWZ model

Email notifications will be applied after download.

Send part feedback

Symbol

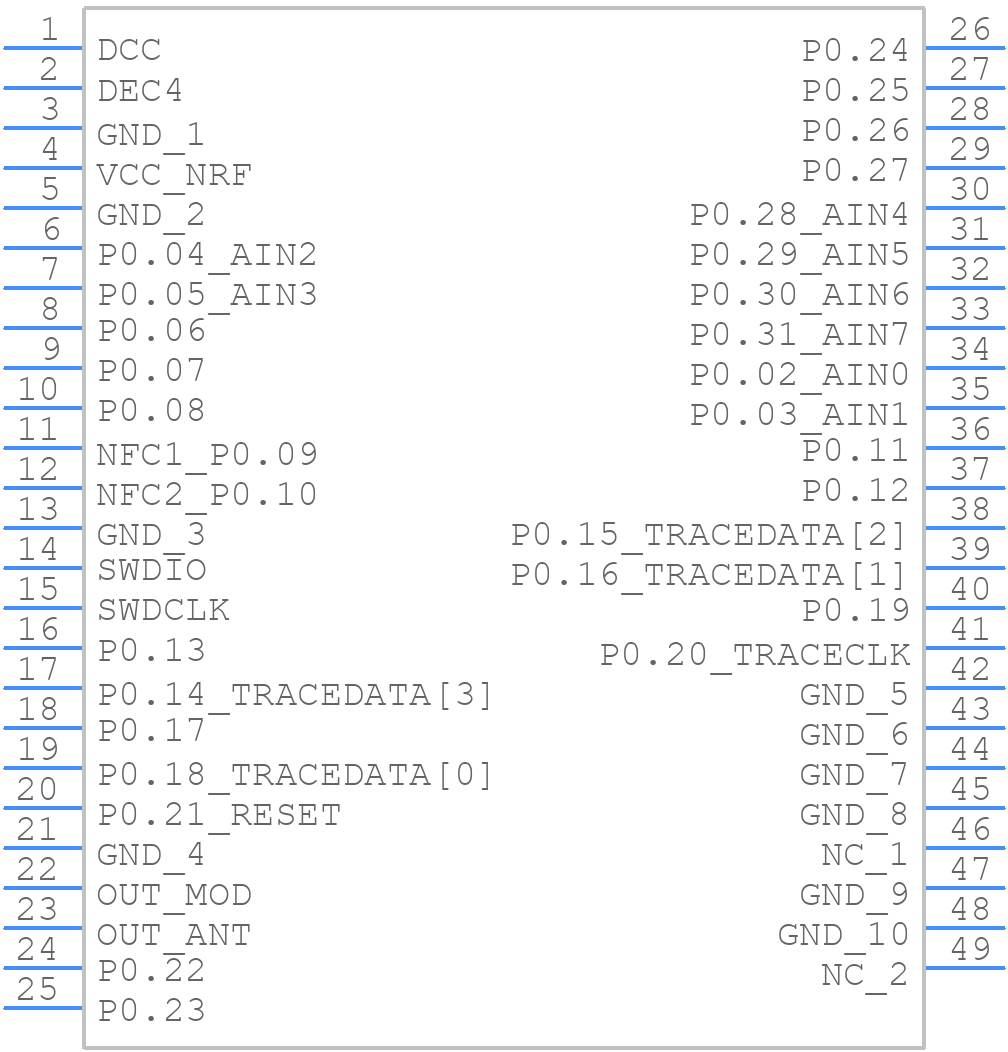

EYSHCNZWZ - Kaga Electronics USA - PCB symbol

PCB Footprints

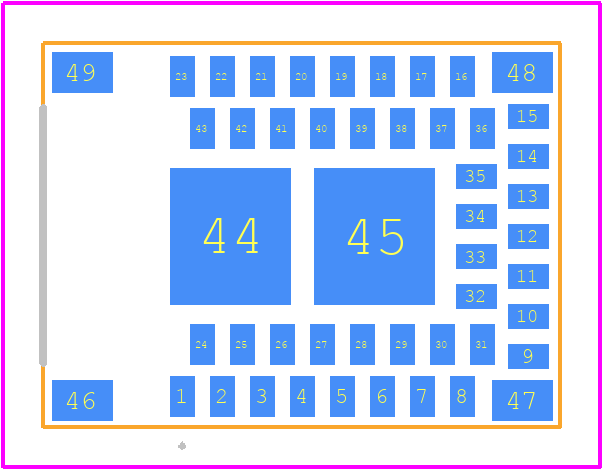

EYSHCNZWZ - Kaga Electronics USA PCB footprint - Other - Other - EYSHCNZWZ-1

3D Models

EYSHCNZWZ - Kaga Electronics USA - 3D model - Other - EYSHCNZWZ-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for EYSHCNZWZ
Part Number EYSHCNZWZ
Manufacturer Kaga Electronics USA
Pin Count 49
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - EYSHCNZWZ-1
Released Date Jul 26, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EYSHCNZWZ Details

Manufacturer Part Number:
EYSHCNZWZ
Manufacturer:
KAGA FEI America Inc

Trust Checks

Community Provided

System Verified

Community Approved

EYSHCNZWZ Overview

Use the download button to access the EYSHCNZWZ schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EYSHC, or try a keyword search
