Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
Proper thermal management is crucial for the EZPE50606MTA. Ensure good heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB with adequate thermal vias. Follow Panasonic's thermal design guidelines and consider using a thermal simulation tool to optimize your design.
Panasonic recommends following the J-STD-020D.1 standard for soldering conditions. The recommended temperature profile is: peak temperature 260°C, time above 217°C 30s, and time above 183°C 90s. Ensure proper soldering techniques and handling to prevent damage to the component.
To ensure reliability and longevity, follow Panasonic's recommended operating conditions, storage guidelines, and handling procedures. Implement proper power sequencing, decoupling, and ESD protection in your design. Additionally, consider using a robust PCB design, adequate clearance, and creepage distances to prevent electrical overstress.
Yes, when using the EZPE50606MTA in high-vibration or high-temperature environments, ensure that your design takes into account the component's mechanical and thermal limitations. Follow Panasonic's guidelines for vibration and temperature testing, and consider using additional mechanical support or thermal management measures to ensure reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EZPE50606MTA Overview

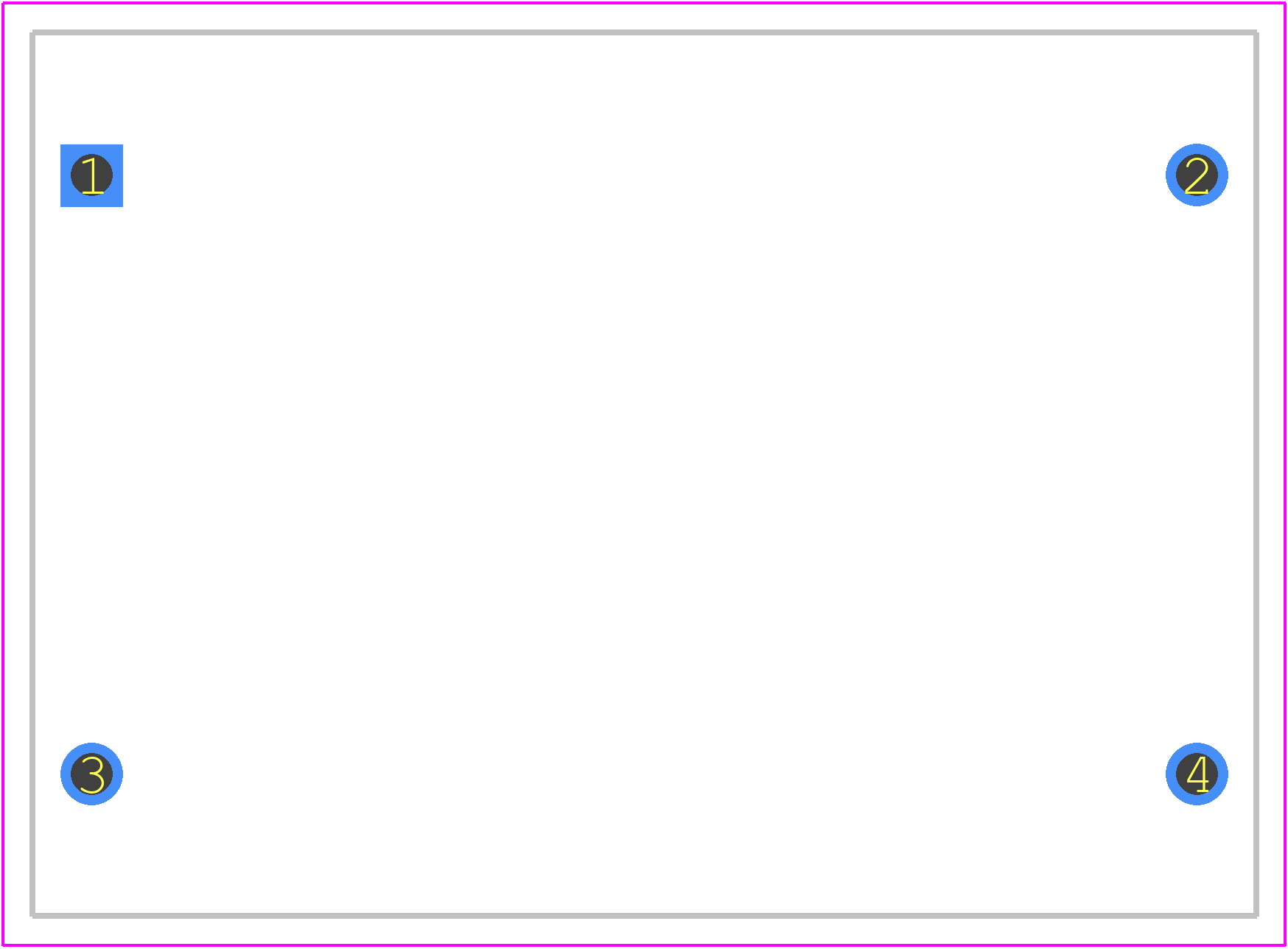

Use the download button to access the EZPE50606MTA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EZPE5,
or try a keyword search, such as Ceramic Capacitors
