EZPV70506MDC - Panasonic

Description: AC or DC:DC,Rated Voltage(V):700,Capacitance(uF):50,Capacitance Tolerance(%):+/-10,L*T*H:57.5*30*51,Lead spacing(mm):52.5,Category Temp.Range(℃):-40 to 105 (85)

Download EZPV70506MDC Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EZPV70506MDC model

Email notifications will be applied after download.

Send part feedback

Symbol

EZPV70506MDC - Panasonic - PCB symbol

PCB Footprints

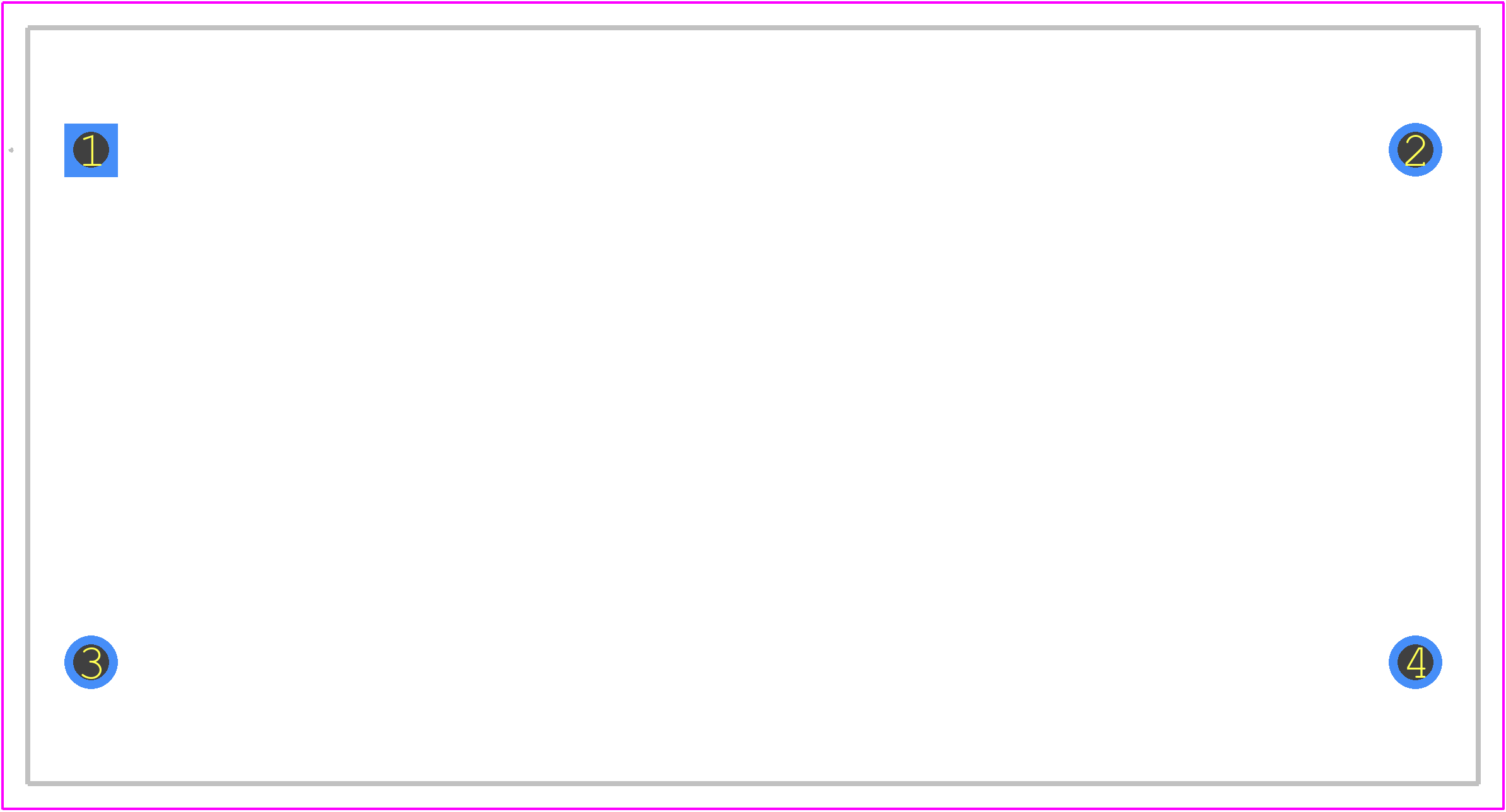

EZPV70506MDC - Panasonic PCB footprint - Other - Other - EZPV70506MDC-1
