Part Image

EZPV80306MDS - Panasonic

Description: Series/Type: EZPV-D, DC, Rated voltage (V): 800, Category Temp. Range (°C): -40 to 105 (85), Capacitance (µF): 30, Capacitance tolerance (%): +/-10, Dielectric material: MPP, L Dimension (mm): 57.5, T Dimension (mm): 30, H Dimension (mm): 51, Lead spacing (mm): 52.5, Short cut lead wire type, AEC-Q200: base on, Safety Mechanism: installed

Download EZPV80306MDS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EZPV80306MDS - Panasonic - PCB symbol
click to zoom
PCB Footprints

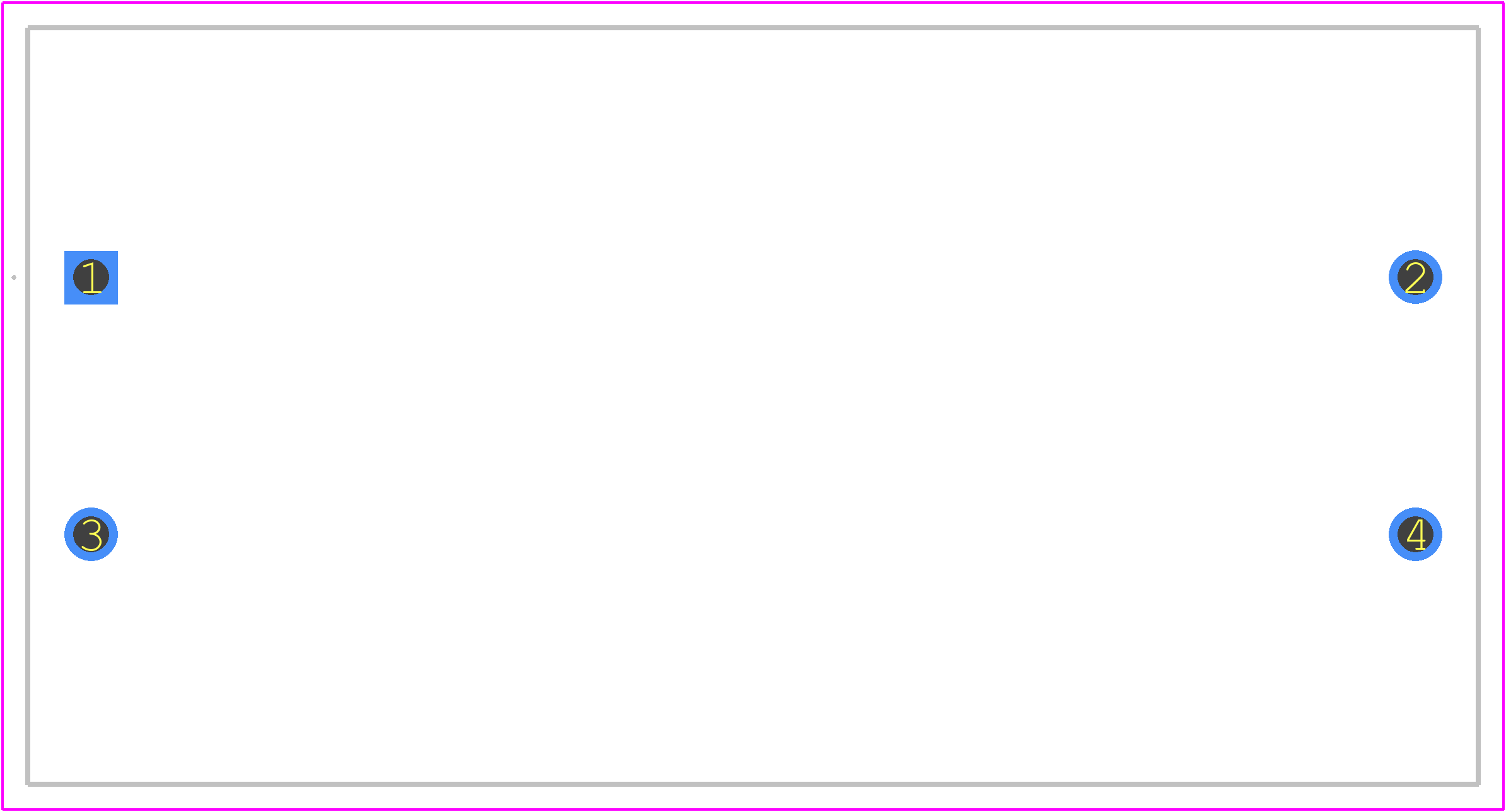

EZPV80306MDS - Panasonic PCB footprint - Other - Other - EZPV80306MDS-1
click to zoom
3D Models
EZPV80306MDS - Panasonic - 3D model - Other - EZPV80306MDS-1
click to zoom

EZPV80306MDS Details

  • Manufacturer Part Number:

    EZPV80306MDS

  • Manufacturer:

    Panasonic Electronic Components

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EZPV80306MDS Overview

Use the download button to access the EZPV80306MDS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EZPV8, or try a keyword search, such as Ceramic Capacitors
