F-138P - Triad Magnetics

Description: Single Primary Power Transformers 25.2Vct@0.060A 115V PCB MOUNT/F-138P

Download F-138P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
F-138P - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

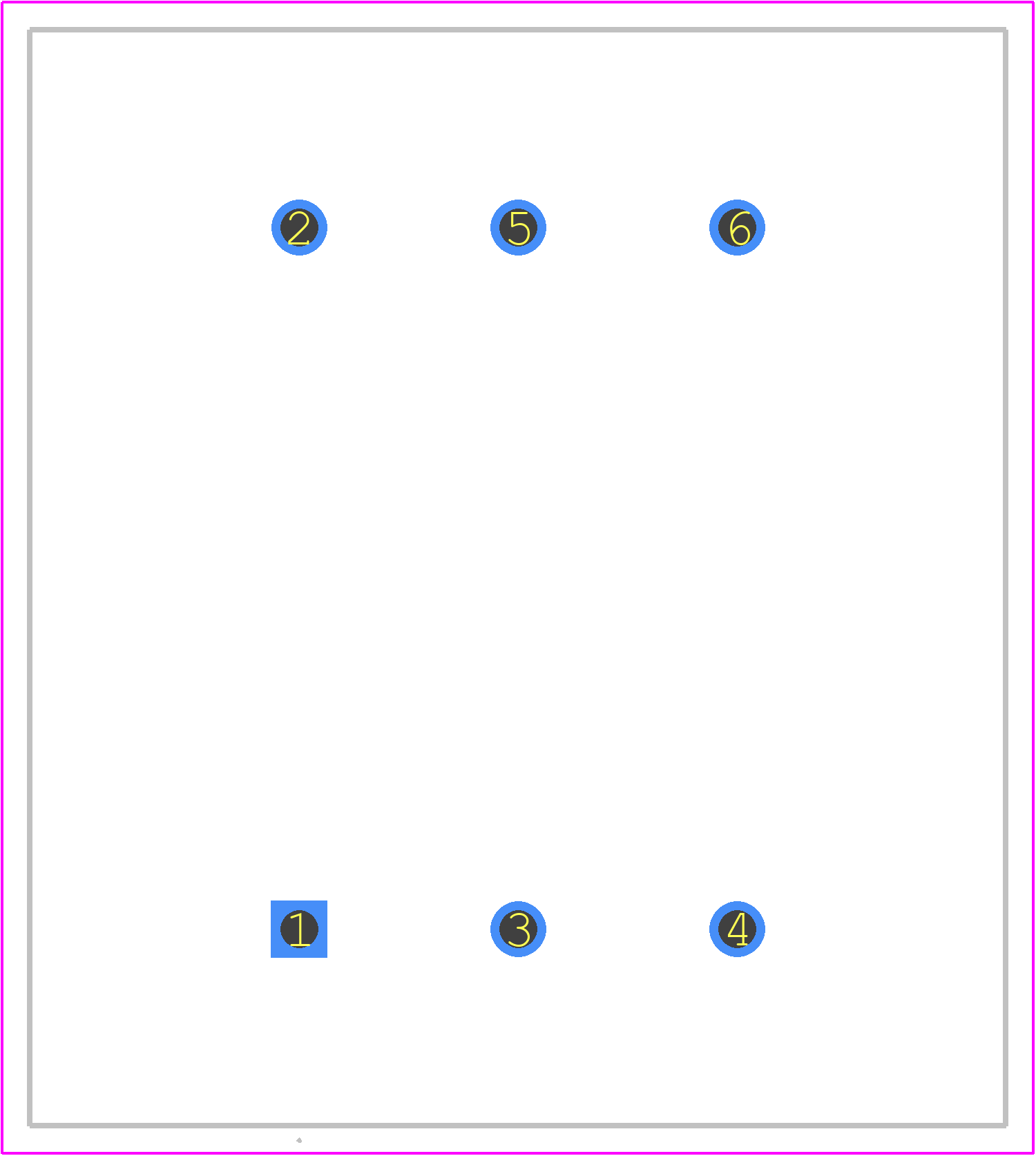

F-138P - Triad Magnetics PCB footprint - Other - Other - F-138P-2
click to zoom
3D Models
F-138P - Triad Magnetics - 3D model - Other - F-138P-2
click to zoom

F-138P Details

  • Manufacturer Part Number:

    F-138P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    6.02

  • Application:

    POWER

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    30.16 mm

  • Input Voltage-Max:

    115 V

  • Input Voltage-Nom:

    115 V

  • Isolation Voltage:

    1500 V

  • Length:

    35.32 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.12 A

  • Output Voltage 1:

    12.6 V

  • Output Voltage 2:

    12.6 V

  • Primary Rating:

    SINGLE 115V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    1.5 VA

  • Width:

    29.37 mm

F-138P Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for F-138P is -40°C to 85°C, although it can withstand storage temperatures up to 125°C.
  • Triad Magnetics recommends following the recommended PCB layout and spacing guidelines in the datasheet, including keeping the transformer at least 1.5 mm away from other components and using a ground plane to reduce EMI.
  • Yes, F-138P is designed to withstand high-vibration environments, but it's recommended to follow Triad Magnetics' guidelines for vibration testing and to ensure proper mounting and securing of the transformer.
  • To minimize EMI and RFI, Triad Magnetics recommends using a shielded enclosure, keeping the transformer away from sensitive components, and following proper PCB layout and spacing guidelines.
  • The maximum allowable voltage imbalance for F-138P is ±10% of the rated voltage, although it's recommended to maintain a voltage balance of ±5% or less for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F-138P Overview

Use the download button to access the F-138P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F-138, or try a keyword search, such as Power/Mains Transformers
