F-139P - Triad Magnetics

Description: Power Transformers POWER TRANSFORMER 12.6Vct@0.120A 115V PCB MOUNT/F-139P

Download F-139P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

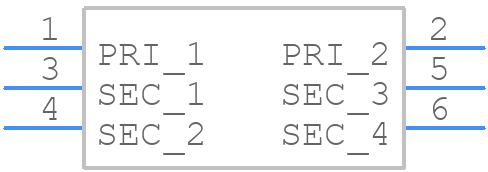

F-139P - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

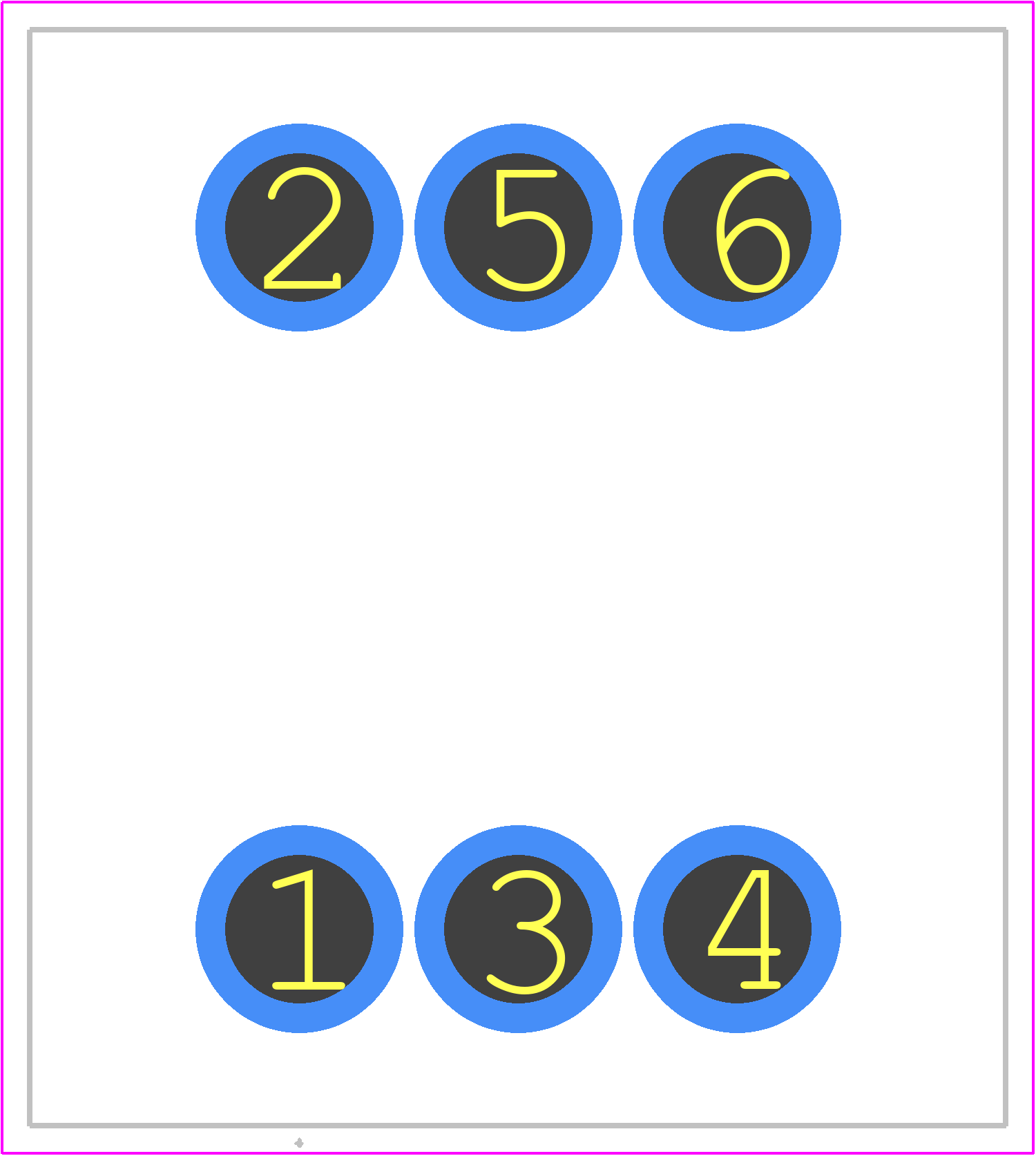

F-139P - Triad Magnetics PCB footprint - Other - Other - F-139P-1
click to zoom
3D Models
F-139P - Triad Magnetics - 3D model - Other - F-139P-1
click to zoom

F-139P Details

  • Manufacturer Part Number:

    F-139P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    6.02

  • Application:

    POWER

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    30.16 mm

  • Input Voltage-Nom:

    115 V

  • Isolation Voltage:

    1500 V

  • Length:

    35.32 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.24 A

  • Output Voltage 1:

    6.3 V

  • Output Voltage 2:

    6.3 V

  • Primary Rating:

    SINGLE 115V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    1.5 VA

  • Width:

    29.37 mm

F-139P Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the F-139P is -40°C to 125°C, although it can withstand up to 150°C for short periods of time.
  • Proper thermal management can be achieved by providing adequate airflow, using a heat sink if necessary, and ensuring that the component is not exposed to excessive ambient temperatures.
  • The maximum allowable voltage for the F-139P is 1500Vrms, although it's recommended to operate at 1200Vrms or below for optimal performance and reliability.
  • Yes, the F-139P is suitable for high-frequency applications up to 100 kHz, but it's essential to consider the core losses and ensure that the design meets the required efficiency and thermal management requirements.
  • Selecting the correct F-139P variant depends on factors such as the required inductance, current rating, and physical size constraints. Consult the datasheet and Triad Magnetics' application notes for guidance on selecting the appropriate variant.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F-139P Overview

Use the download button to access the F-139P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F-139, or try a keyword search, such as Power/Mains Transformers
