F-348XP - Triad Magnetics

Description: Power Transformers Power Transformer, PC Mount, Dual Primary/Secondary, 4 1/2 V A, 6.3/12.6VDC (Nominal Secondary) Output, 12.6VDC CT at 0.35A Secondary in Series, 6.3VDC at 0.7A Secondary in Parallel, 2 Inch Width

Download F-348XP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
F-348XP - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

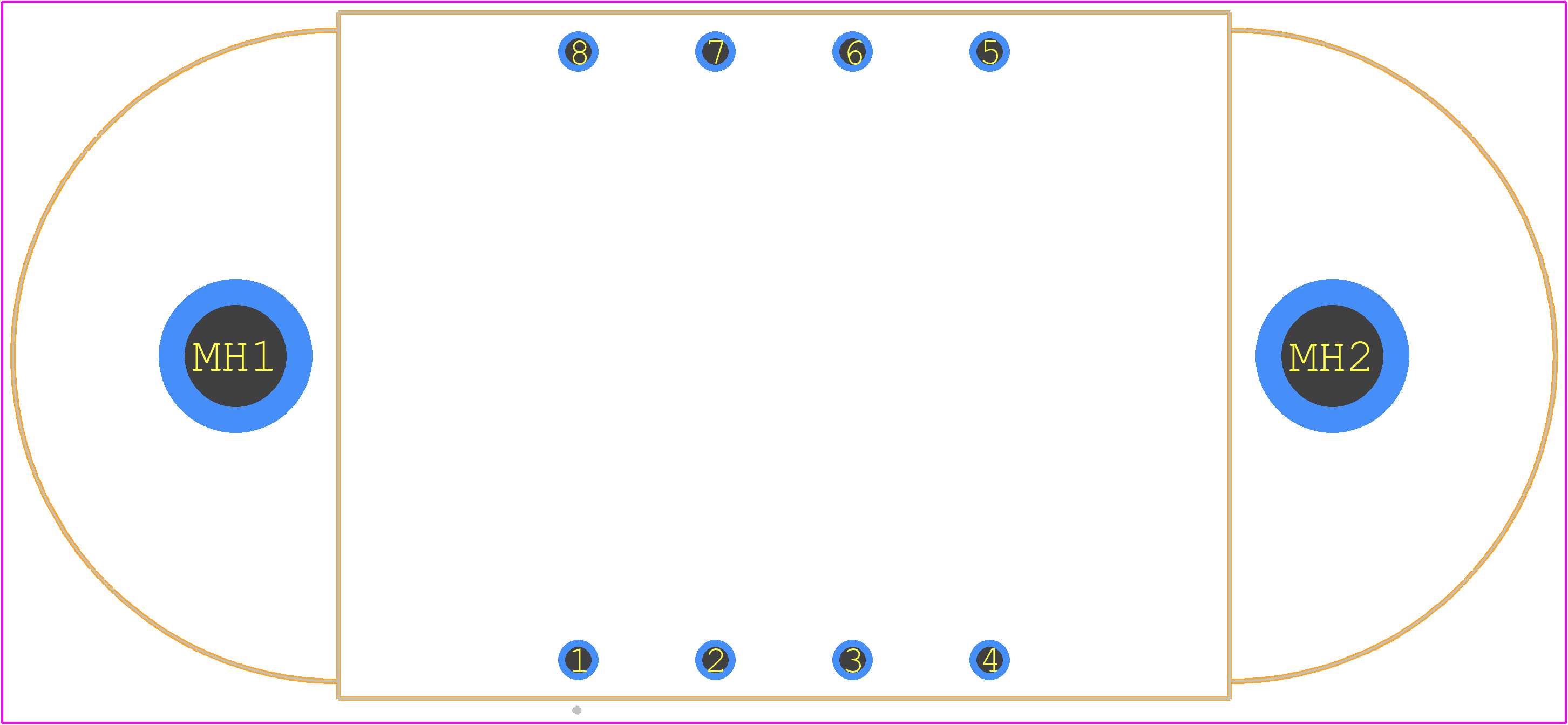

F-348XP - Triad Magnetics PCB footprint - Other - Other - F-348XP-1
click to zoom
3D Models
F-348XP - Triad Magnetics - 3D model - Other - F-348XP-1
click to zoom

F-348XP Details

  • Manufacturer Part Number:

    F-348XP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    6.02

  • Application:

    POWER

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    34.93 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    60.33 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.7 A

  • Output Voltage 1:

    6.3 V

  • Output Voltage 2:

    6.3 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    4.5 VA

  • Width:

    41.28 mm

F-348XP Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the F-348XP is -40°C to 125°C, although it can withstand storage temperatures up to 150°C.
  • Proper thermal management can be achieved by providing adequate airflow, using a heat sink if necessary, and ensuring that the component is mounted on a suitable PCB with thermal vias.
  • The maximum allowable voltage for the F-348XP is 150% of the rated voltage for a maximum of 1 second, although it's recommended to operate within the rated voltage to ensure reliability.
  • Yes, the F-348XP is designed to withstand high-vibration environments, but it's recommended to follow proper mounting and soldering procedures to ensure reliability.
  • Troubleshooting issues with the F-348XP typically involves checking for proper voltage and current ratings, ensuring correct PCB layout and component placement, and verifying that the component is not damaged or overheated.
