F-367P - Triad Magnetics

Description: Power Transformers POWER TRANSFORMER 230.0Vct@0.0065A 115V/230 PCB MOUNT/F-367P

Download F-367P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

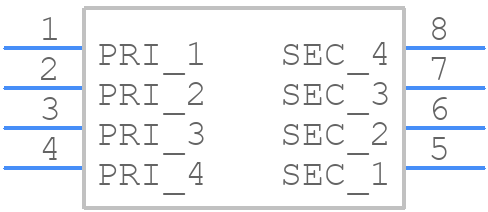

F-367P - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

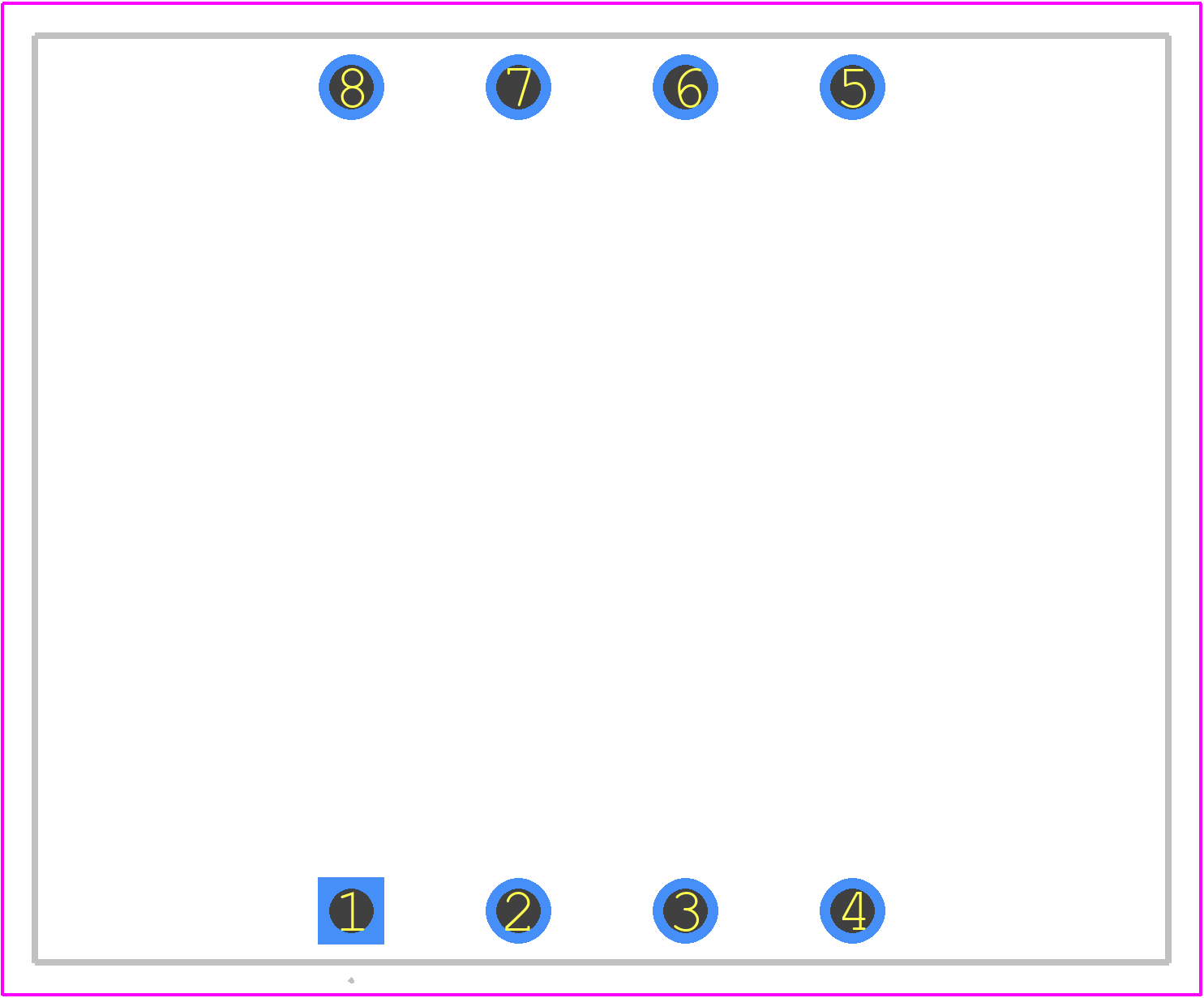

F-367P - Triad Magnetics PCB footprint - Other - Other - F-367P-1
click to zoom
3D Models
F-367P - Triad Magnetics - 3D model - Other - F-367P-1
click to zoom

F-367P Details

  • Manufacturer Part Number:

    F-367P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    6.02

  • Application:

    POWER

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    30.16 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    28.58 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.013 A

  • Output Voltage 1:

    115 V

  • Output Voltage 2:

    115 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    POWER TRANSFORMER

  • VA Rating:

    1.5 VA

F-367P Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for F-367P is -40°C to 125°C, although it can withstand up to 150°C for short periods.
  • Triad Magnetics recommends a minimum of 0.25 inches (6.4 mm) spacing between the transformer and other components, and a PCB layout that minimizes electromagnetic interference (EMI) and radiation.
  • The maximum voltage rating for F-367P is 250 VRMS, although it's recommended to derate the voltage by 10-20% to ensure reliable operation.
  • While F-367P is designed for 50/60 Hz operation, it can be used in high-frequency applications up to 100 kHz with proper design and testing. However, core losses and magnetizing inductance may need to be considered.
  • Select the correct F-367P variant based on your application's power rating, voltage, and current requirements. Consult Triad Magnetics' selection guide or contact their technical support for assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F-367P Overview

Use the download button to access the F-367P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F-367, or try a keyword search, such as Power/Mains Transformers
