The recommended operating temperature range for the F-370P is -40°C to 125°C, although it can withstand storage temperatures up to 150°C.
Triad Magnetics recommends following standard PCB layout guidelines for power inductors, including keeping the component away from high-frequency signals, using a solid ground plane, and maintaining a minimum of 0.1 inch (2.5 mm) spacing between the inductor and other components.
The self-resonant frequency (SRF) of the F-370P is typically around 20-30 MHz, although this can vary depending on the specific application and operating conditions.
While the F-370P is a high-quality component, it is not specifically designed or qualified for high-reliability or military applications. For such applications, Triad Magnetics recommends using their military-grade or high-reliability inductors, such as the F-370P-MIL or F-370P-HR series.
To minimize EMI and radiation issues with the F-370P, Triad Magnetics recommends using proper shielding, grounding, and layout techniques, as well as following standard EMI/RFI mitigation guidelines for power inductors.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
F-370P Overview

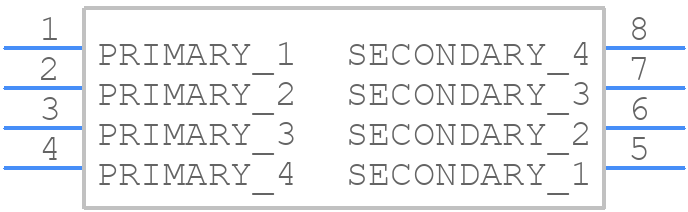

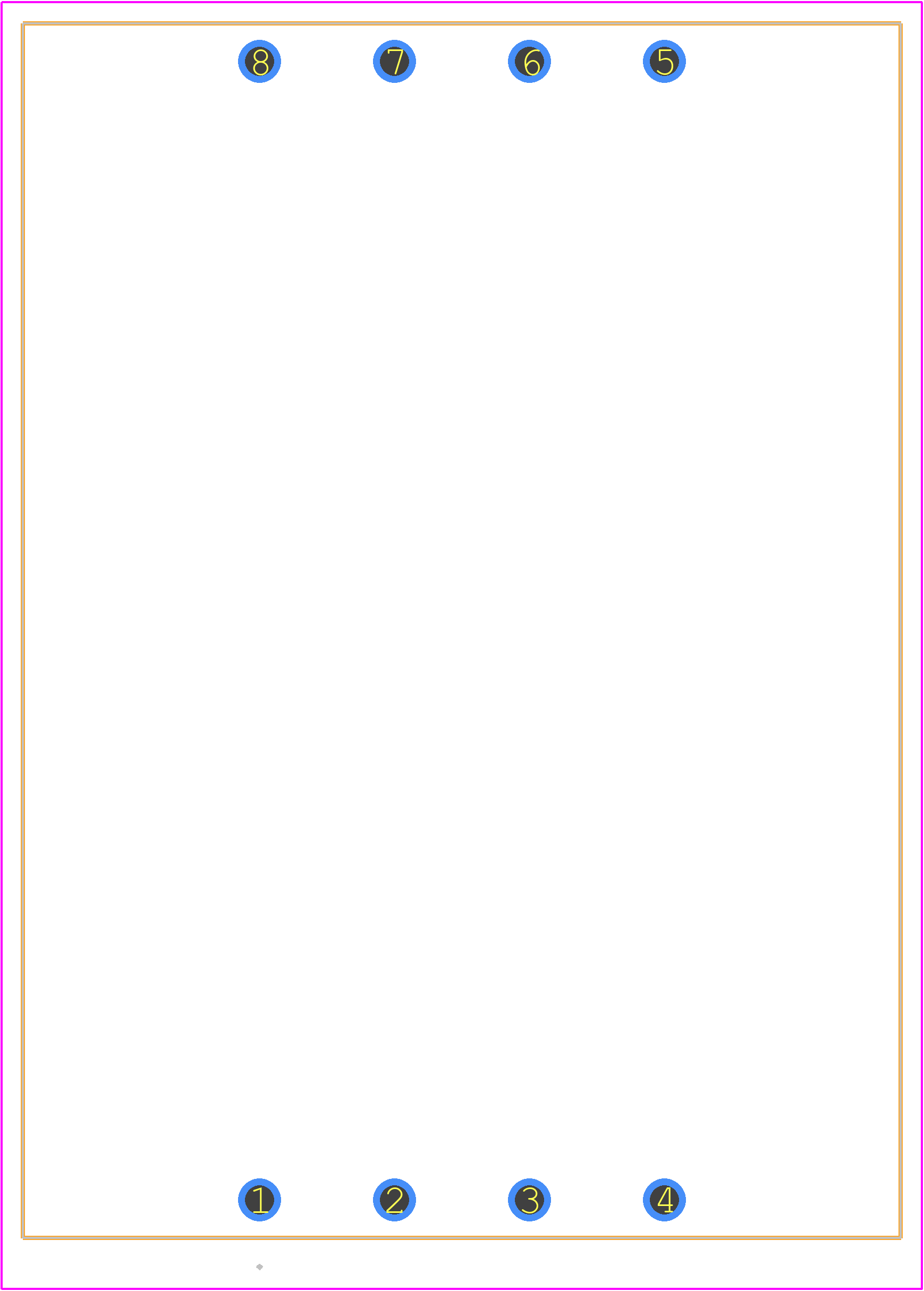

Use the download button to access the F-370P schematic symbol, PCB footprint, and 3D model.
