- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for F-5461AS
- Part Number F-5461AS
- Manufacturer SILSMART
- Pin Count 12
- Part Category Display
- Package Category Other
- Footprint Name Other - F-5461AS-4
- Released Date Feb 17, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
F-5461AS Details
-
Manufacturer Part Number:
F-5461AS
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
HTS Code:
8541.40.20.00
-
Manufacturer:
Zhongshan Silsmart Optoelectronics Co Ltd
-
Color@Wavelength:
Red
-
Configuration:
Common Cathode
-
Display Height:
14.2 mm
-
Number of Characters:
4
-
Operating Temperature-Max:
85 °C
-
Operating Temperature-Min:
-40 °C
Trust Checks
Expert Contribution
System Verified
Community Approved
F-5461AS Overview

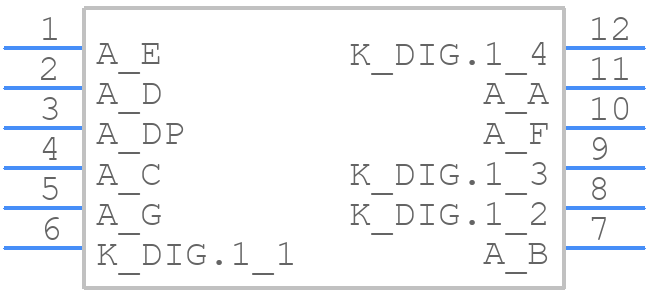

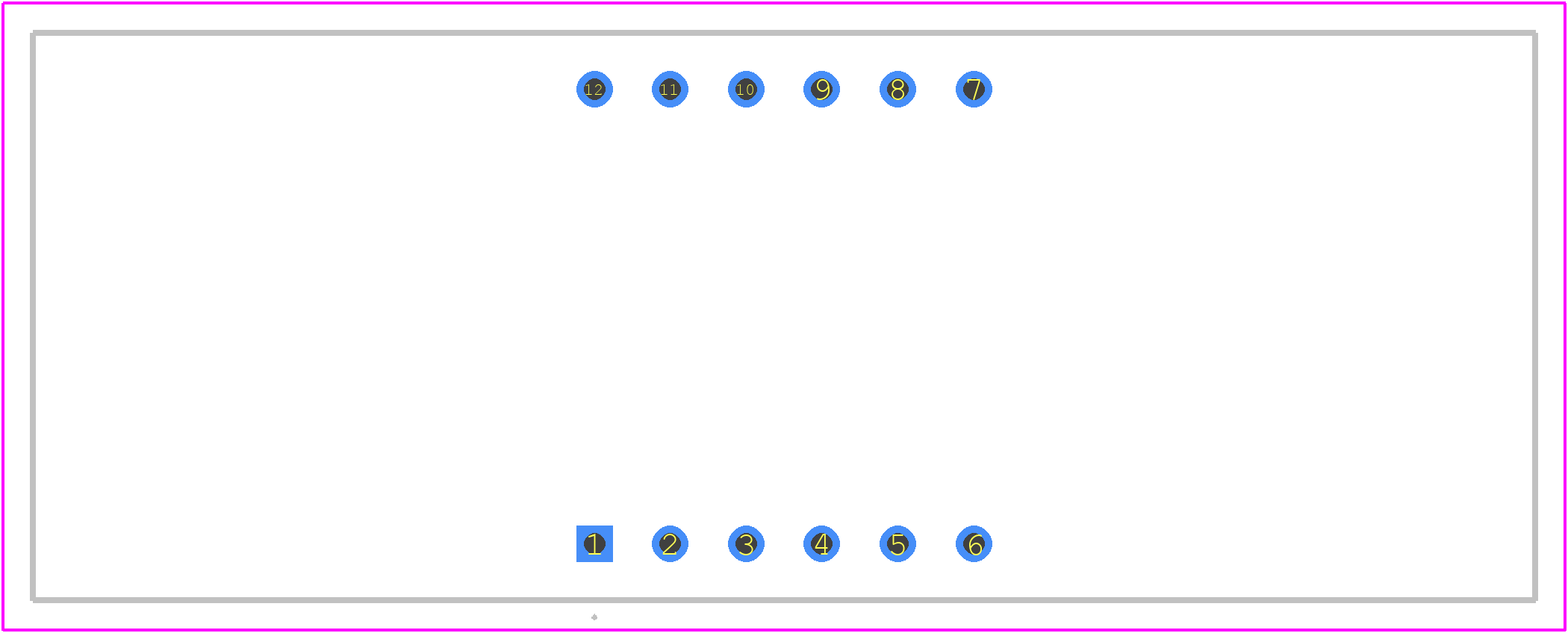

Use the download button to access the F-5461AS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F-546,
or try a keyword search, such as LED Displays
