The recommended PCB layout for the F03P015S05L is to use a symmetrical layout with the input and output pins on opposite sides of the board, and to keep the input and output traces as short as possible to minimize noise and EMI.
To ensure reliable operation over the full temperature range, it's essential to follow the recommended derating curves for voltage and current, and to ensure proper thermal management, such as using a heat sink or thermal interface material, to keep the junction temperature below the maximum rating.
The F03P015S05L is commonly used in industrial power supplies, motor control systems, and renewable energy systems, such as wind and solar power inverters, due to its high reliability, high efficiency, and ability to operate in harsh environments.
To protect the F03P015S05L from overvoltage and overcurrent conditions, it's recommended to use a voltage clamp or surge absorber, and to implement overcurrent protection using a fuse or current-limiting resistor, as well as to follow the recommended operating conditions and derating curves.
The typical lead time and availability for the F03P015S05L may vary depending on the region and distributor. It's recommended to check with authorized distributors or the manufacturer's website for the latest information on lead times and availability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
F03P015S05L Overview

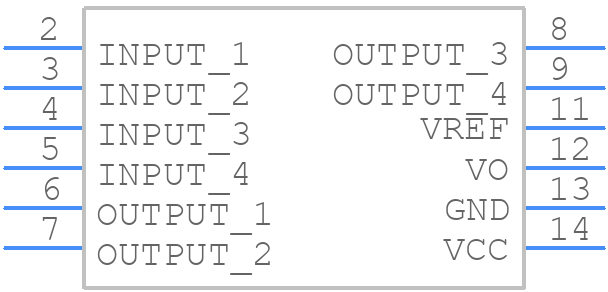

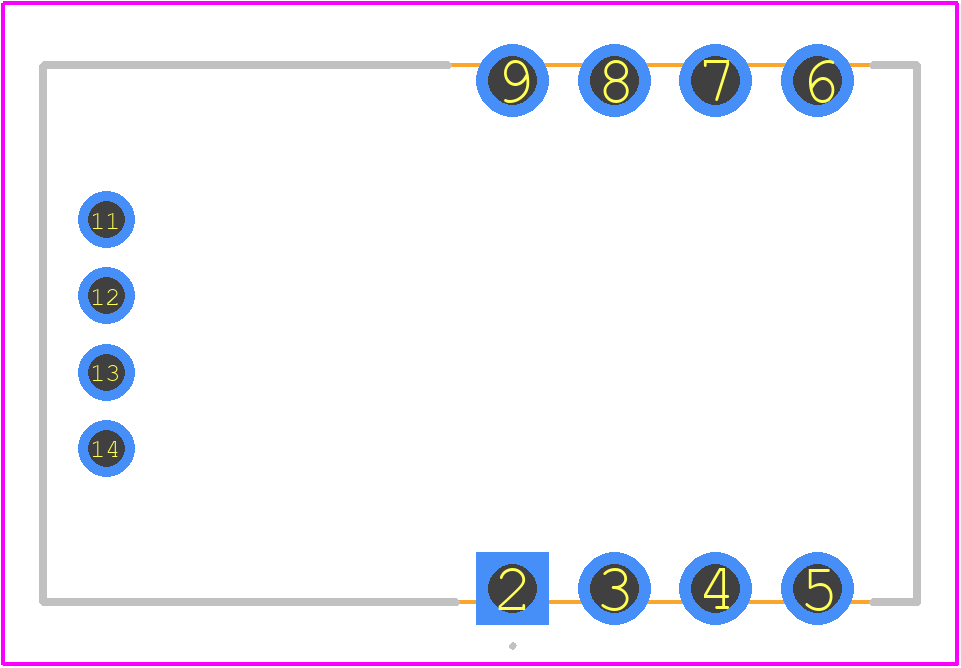

Use the download button to access the F03P015S05L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F03P0,
or try a keyword search, such as Other Sensors/Transducers
