F10-110-C2 - Triad Magnetics

Description: Power Transformers Power Transformer, PC Mount, Class 2/3, 6Pin, 1.1 V A, 5/10VDC (Nominal Secondary) Output, Primary Input, 10VDC CT at 0.11A Secondary in Series, 5VDC at 0.22A Secondary in Parallel

Download F10-110-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

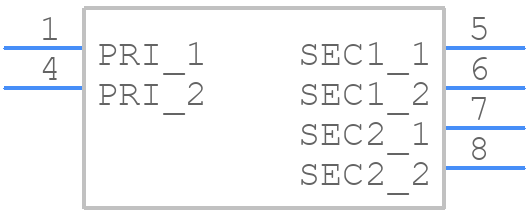

Symbol
F10-110-C2 - Triad Magnetics - PCB symbol
click to zoom

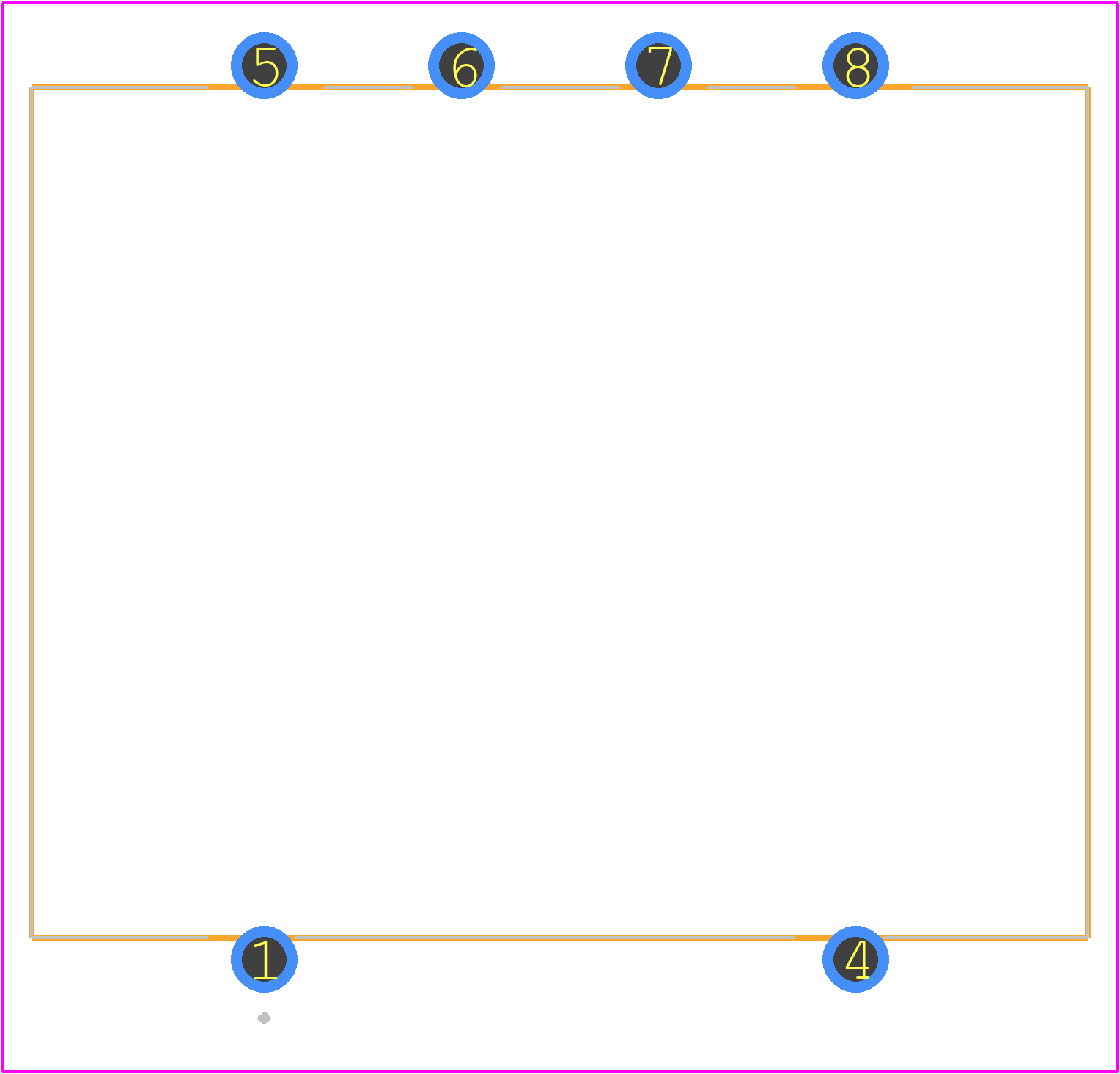

PCB Footprints
F10-110-C2 - Triad Magnetics PCB footprint - Other - Other - F10-110-C2-2
click to zoom
3D Models
F10-110-C2 - Triad Magnetics - 3D model - Other - F10-110-C2-2
click to zoom

F10-110-C2 Details

  • Manufacturer Part Number:

    F10-110-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    23.81 mm

  • Input Voltage-Nom:

    115 V

  • Isolation Voltage:

    1500 V

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.22 A

  • Output Voltage 1:

    5 V

  • Output Voltage 2:

    5 V

  • Primary Rating:

    SINGLE 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    1.1 VA

  • Width:

    28.58 mm

F10-110-C2 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the F10-110-C2 is 50-400 Hz, although it can be used at higher frequencies with reduced performance.
  • Yes, the F10-110-C2 can be used in a switching power supply application, but it's essential to ensure that the transformer is designed to handle the high-frequency switching and the associated voltage and current stresses.
  • The maximum ambient temperature rating for the F10-110-C2 is 130°C, with a maximum temperature rise of 60°C above ambient.
  • While the F10-110-C2 is a high-quality transformer, it may not meet the specific requirements for high-reliability or military applications. Triad Magnetics offers other products that are specifically designed for these applications, such as the TX product line.
  • Yes, Triad Magnetics offers customization options for the F10-110-C2, including different winding configurations, insulation systems, and termination styles. Contact Triad Magnetics for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F10-110-C2 Overview

Use the download button to access the F10-110-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F10-1, or try a keyword search, such as Power/Mains Transformers
