F1102NBGI - Renesas Electronics

Description: The IDT F1102 dual channel device operates with a single 5V supply. It is optimized for operation in a Multicarrier BaseStation Receiver for RF bands from 698 to 915 MHz with High or Low Side Injection. IF frequencies from 50 to 300 MHz are supported. The F1102 also supports the 400 MHz RF bands with some simple external matching modifications. Nominally, the device offers +43 dBm Output IP3 with 330 mA of ICC. Alternately one can adjust 4 resistor values and a toggle pin to run the devices in low current m

Download F1102NBGI Model

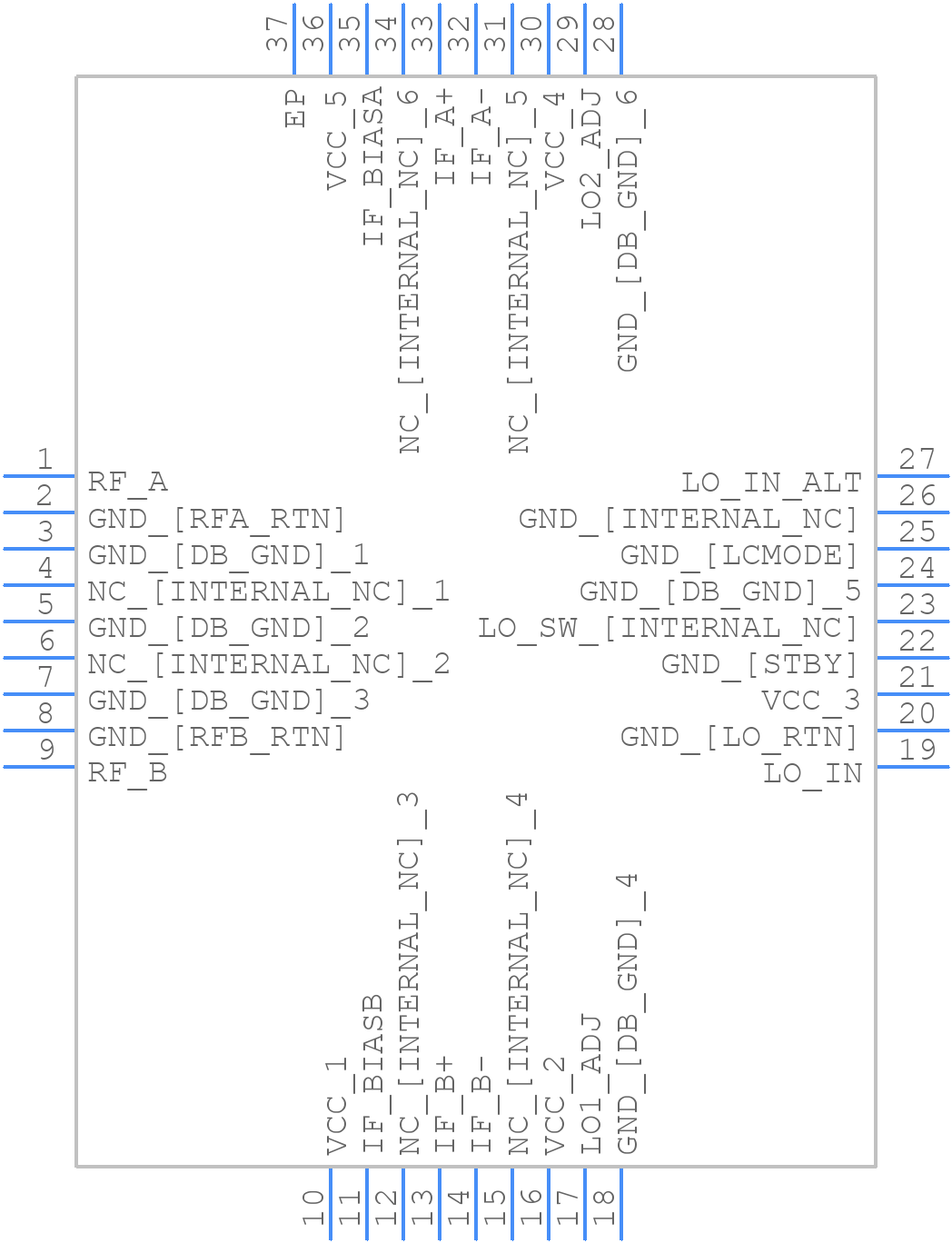

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
F1102NBGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NBG36P1
click to zoom
3D Models
F1102NBGI - Renesas Electronics  - 3D model - Quad Flat No-Lead - NBG36P1
click to zoom

F1102NBGI Details

  • Manufacturer Part Number:

    F1102NBGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    VFQFPN

  • Pin Count:

    36

  • Manufacturer Package Code:

    NBG36P1

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • RF/Microwave Device Type:

    DOWN CONVERTER

  • Terminal Finish:

    Matte Tin (Sn)

F1102NBGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AP61101) which includes thermal design considerations, such as thermal vias, copper pours, and component placement, to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The F1102NBGI also has a built-in overcurrent detection feature, but it's not enabled by default and requires external resistors to set the detection threshold.
  • Although the datasheet doesn't specify a maximum voltage for the EN pin, Renesas recommends keeping it within the VCC voltage range (typically 3.3V or 5V) to ensure proper operation and prevent damage to the device.
  • While the F1102NBGI is rated for operation up to 125°C, Renesas recommends derating the device's power dissipation and voltage ratings at high temperatures to ensure reliable operation. Consult the datasheet and application notes for specific guidelines.
  • Renesas provides a troubleshooting guide in their application note (AP61102) which covers common issues with the I2C interface, such as bus contention, clock stretching, and slave address conflicts. Additionally, using an I2C bus analyzer or logic analyzer can help identify and debug issues.
