F1102NBGI8 - Renesas Electronics

Description: The IDT F1102 dual channel device operates with a single 5V supply. It is optimized for operation in a Multicarrier BaseStation Receiver for RF bands from 698 to 915 MHz with High or Low Side Injection. IF frequencies from 50 to 300 MHz are supported. The F1102 also supports the 400 MHz RF bands with some simple external matching modifications. Nominally, the device offers +43 dBm Output IP3 with 330 mA of ICC. Alternately one can adjust 4 resistor values and a toggle pin to run the devices in low current m

Download F1102NBGI8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

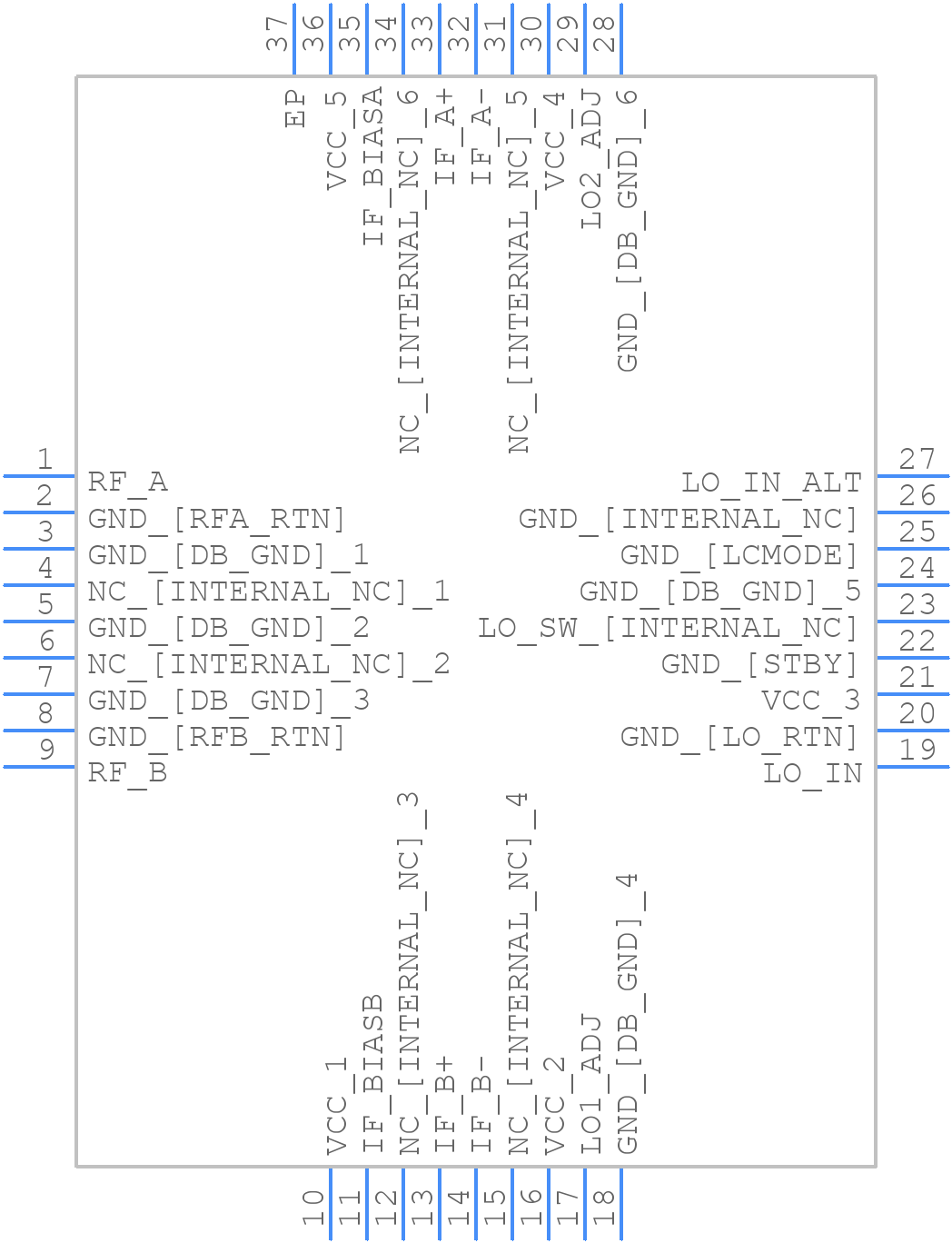

F1102NBGI8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
F1102NBGI8 - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NBG36P1
click to zoom
3D Models
F1102NBGI8 - Renesas Electronics - 3D model - Quad Flat No-Lead - NBG36P1
click to zoom

F1102NBGI8 Details

  • Manufacturer Part Number:

    F1102NBGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    VFQFPN

  • Pin Count:

    36

  • Manufacturer Package Code:

    NBG36P1

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • JESD-609 Code:

    e3

  • RF/Microwave Device Type:

    DOWN CONVERTER

  • Terminal Finish:

    MATTE TIN

F1102NBGI8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) which includes thermal design considerations, such as thermal vias, copper pours, and component placement.
  • Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions and trigger a shutdown or warning signal.
  • According to Renesas, the maximum allowed voltage on the VCC pin during power-up and power-down sequences is 4.5V to prevent damage to the internal voltage regulator.
  • Renesas provides EMC design guidelines in their application note (APL-AN-1202) which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference.
  • The recommended operating temperature range for the F1102NBGI8 is -40°C to 125°C, but it's essential to consider the specific application and environmental conditions to ensure reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F1102NBGI8 Overview

Use the download button to access the F1102NBGI8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F1102, or try a keyword search, such as RF/Microwave Up/Down Converters
