F1162NBGI - Renesas Electronics

Description: The IDT F1162 dual channel device is designed to operate with a single 5V supply. It is optimized for operation in a Multi-carrier BaseStation Receiver for LTE and TDD RF bands from 2300 - 2700 MHz with either Side Injection. IF frequencies from 50 to 500 MHz are supported. Nominally, the device offers +43 dBm Output IP3 with 335 mA of ICC. Alternately one can adjust 4 resistor values and a toggle pin to run the device in low current mode with +38 dBm Output IP3 and 230 mA of ICC.A member of IDT’s Zero-Dist

Download F1162NBGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

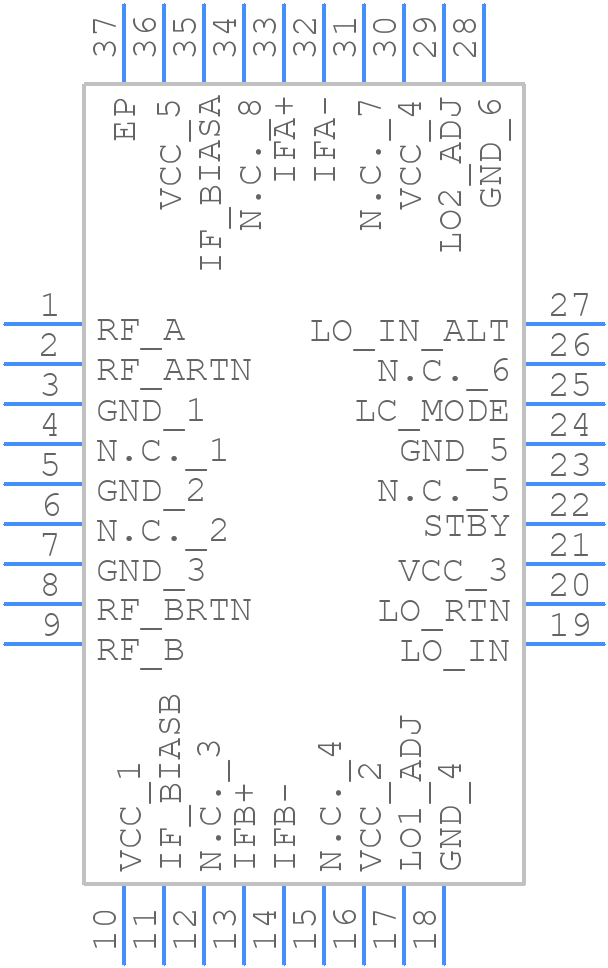

F1162NBGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
F1162NBGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NBG36P1
click to zoom
3D Models
F1162NBGI - Renesas Electronics - 3D model - Quad Flat No-Lead - NBG36P1
click to zoom

F1162NBGI Details

  • Manufacturer Part Number:

    F1162NBGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    VFQFPN

  • Pin Count:

    36

  • Manufacturer Package Code:

    NBG36P1

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • RF/Microwave Device Type:

    DOWN CONVERTER

  • Terminal Finish:

    Matte Tin (Sn)
