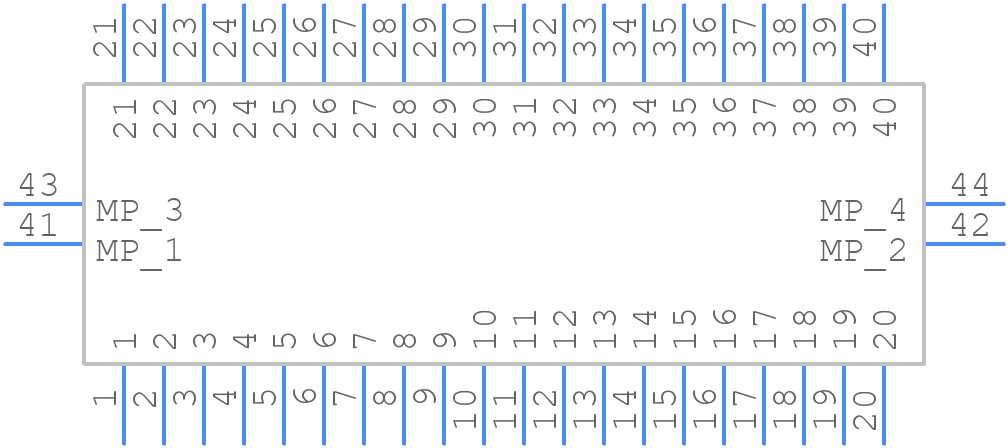

F12-10004042R - Harwin

F12-10004042R Details

• Manufacturer Part Number:

  F12-10004042R

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Harwin

• YTEOL:

  9

• Additional Feature:

  STACKING HEIGHT= 16.2 mm

• Board Mounting Option:

  PEG

• Body Breadth:

  0.295 inch

• Body Depth:

  0.25 inch

• Body Length:

  0.701 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  120 mΩ

• Contact Style:

  CENTRONIC

• Dielectric Withstanding Voltage:

  250AC/DC V

• Durability:

  30 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  0.8 N

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• Mating Contact Pitch:

  0.02 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  6.2 mm

• Plating Thickness:

  FLASH inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  0.4 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.5 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  40

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.1 N
