F12-500 - Triad Magnetics

Description: Power Transformer 2500Vrms 6VA 6 Terminal PC Pin Thru-Hole

Download F12-500 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

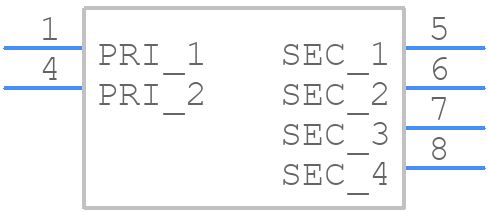

Symbol
F12-500 - Triad Magnetics - PCB symbol
click to zoom

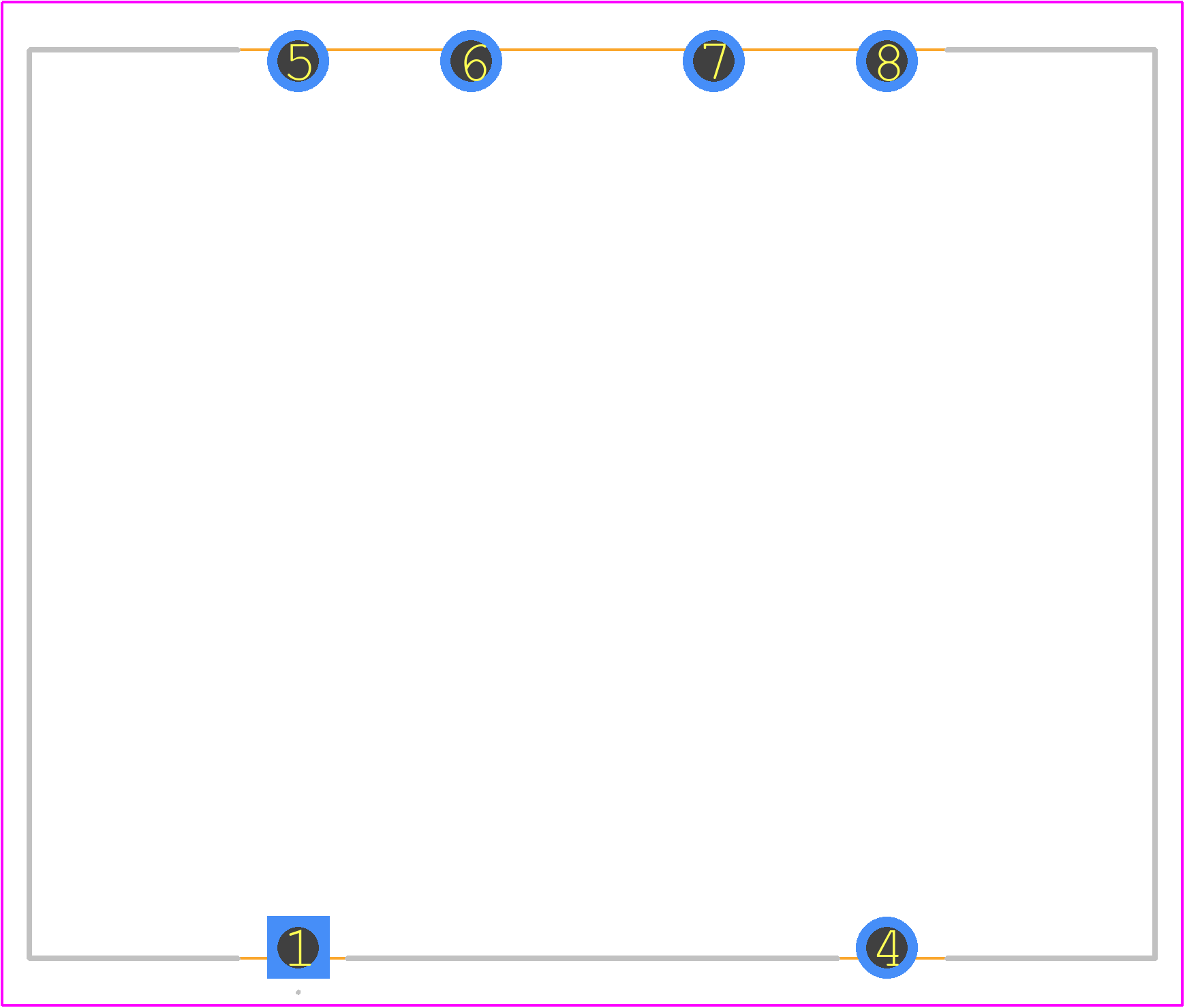

PCB Footprints
F12-500 - Triad Magnetics PCB footprint - Other - Other - F12-500-2
click to zoom
3D Models
F12-500 - Triad Magnetics - 3D model - Other - F12-500-2
click to zoom

F12-500 Details

  • Manufacturer Part Number:

    F12-500

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Application:

    POWER

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    33.34 mm

  • Input Voltage-Nom:

    115 V

  • Isolation Voltage:

    1500 V

  • Length:

    41.28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Output Current 1:

    1 A

  • Output Voltage 1:

    6.3 V

  • Output Voltage 2:

    6.3 V

  • Primary Rating:

    SINGLE 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    6 VA

  • Width:

    33.34 mm

F12-500 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the F12-500 is -40°C to 85°C, with a maximum storage temperature of 125°C.
  • Yes, the F12-500 is designed to withstand high-vibration environments and meets the vibration requirements of IEC 60068-2-6.
  • Yes, the F12-500 is designed to meet the requirements of IEC 61558-1 and UL 5085-1 for safety-critical applications, such as medical devices and industrial control systems.
  • The F12-500 is rated for operation up to 10,000 feet (3,048 meters) above sea level.
  • Yes, the F12-500 is designed to operate in humid or wet environments and meets the requirements of IEC 60068-2-30 for humidity and moisture resistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F12-500 Overview

Use the download button to access the F12-500 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F12-5, or try a keyword search, such as Power/Mains Transformers
