Description:The IDT F1200 low noise digital IF VGA featuring FlatNoise™ technology is ideal for commercial radio systems with very high SNR requirements. Its extremely low distortion makes the device very flexible, while the 200 ohm differential input and output impedances allow it to integrate seamlessly into the signal path.
Renesas provides a recommended PCB layout guide for the F1200NBGI, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. It's available on the Renesas website or through their support team.
The F1200NBGI has a built-in overcurrent protection feature, but it requires external components to implement. Renesas provides an application note that outlines the recommended circuitry and component values for overcurrent protection. Additionally, the datasheet provides guidance on the overcurrent detection threshold and response time.
The recommended startup sequence for the F1200NBGI involves powering up the device in a specific order to ensure proper operation. Renesas provides a recommended startup sequence in the datasheet, which includes powering up the input voltage, followed by the enable pin, and then the clock signal.
Renesas provides an I2C troubleshooting guide that covers common issues and their solutions, such as bus contention, clock stretching, and slave address conflicts. Additionally, the datasheet provides guidance on I2C protocol compliance and timing requirements.
The F1200NBGI has an operating temperature range of -40°C to 125°C, but this can be affected by factors such as power dissipation, PCB layout, and ambient temperature. Renesas provides thermal derating guidelines in the datasheet to ensure reliable operation within the specified temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
F1200NBGI Overview

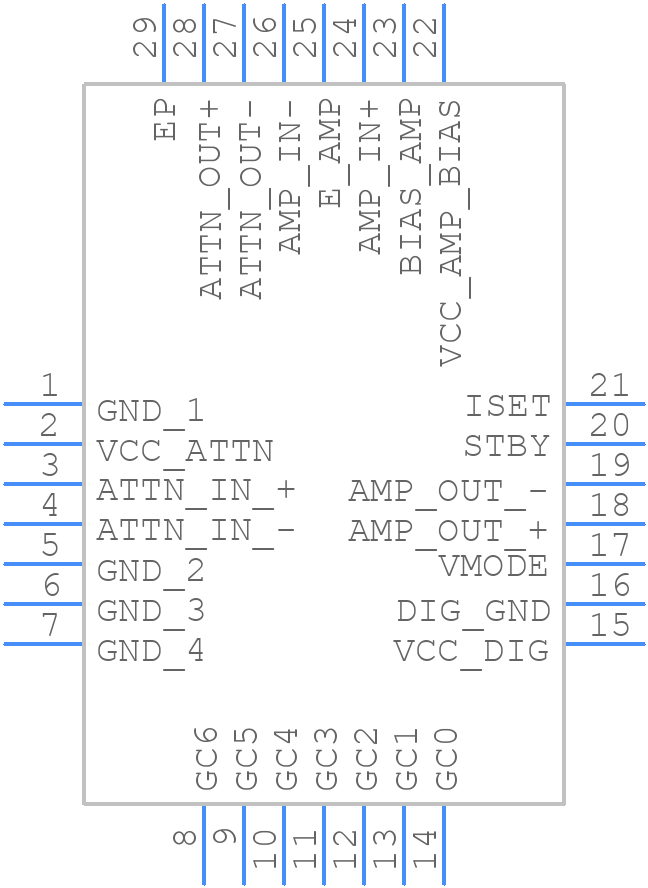

Use the download button to access the F1200NBGI schematic symbol, PCB footprint, and 3D model.
